R&S®AVBrun - NorDig/E-Book and DTMB testing solution

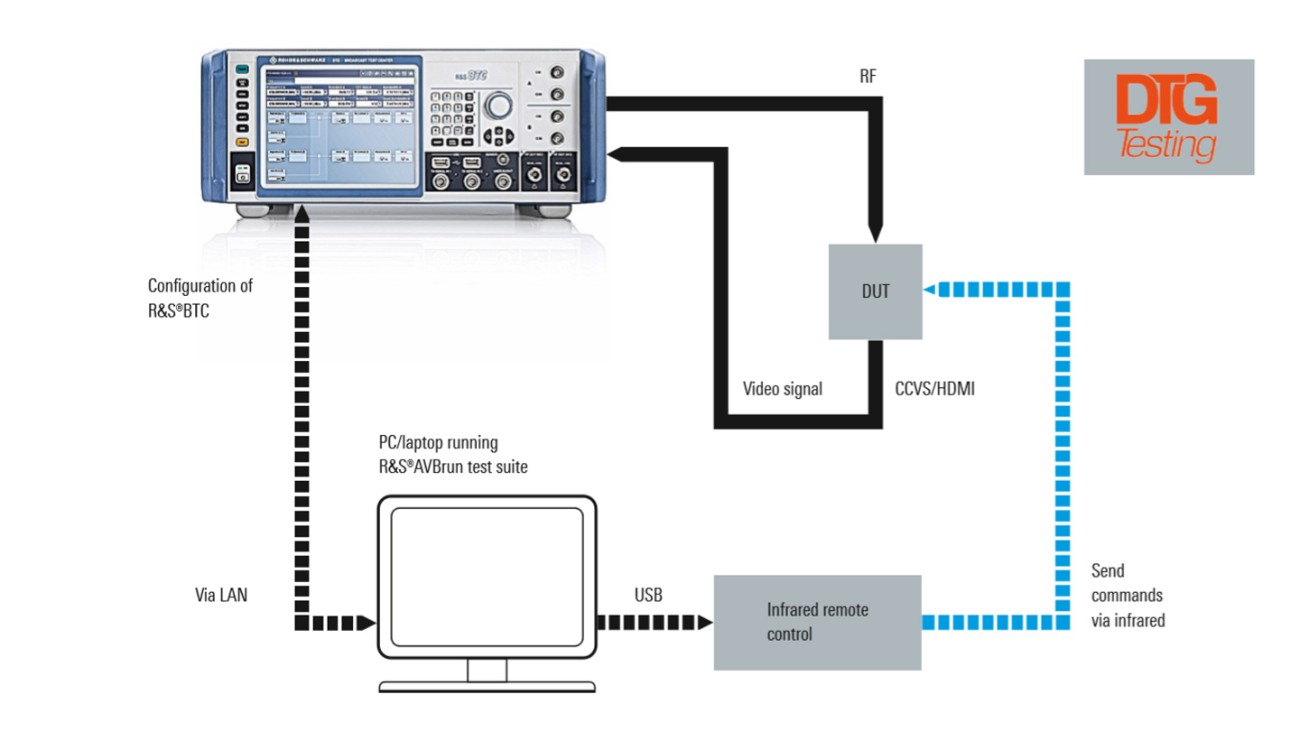

The setup consists of a laptop with the R&S®AVBrun software for testing the DUT, R&S®BTC and RedRat infrared sensor to remotely control the DUT and IP power control for power management of the DUT.
The setup consists of a laptop with the R&S®AVBrun software for testing the DUT, R&S®BTC and RedRat infrared sensor to remotely control the DUT and IP power control for power management of the DUT.
Open Lightbox

The NorDig technical specifications were established to ensure that DVB-T/DVB-T2 devices on the market satisfy a common set of minimum requirements, independent of the operator/service provider and transmission media.

The R&S®AVBrun NorDig test suite aims to provide a comprehensive quality examination of the DVB-T/DVB-T2 consumer products according to the NorDig Unified specification, version 2.4.

The specification is covered by subsets:

  • NorDig test suites
    • R&S®AVBrun NorDig test suite, subset DVB-T/DVB-T2 RF test: R&S®BTC-KT3311
    • R&S®AVBrun NorDig test suite, subset cable: R&S®BTC-KT3325
    • R&S®AVBrun NorDig test suite, subset satellite: R&S®BTC-KT3326
    • R&S®AVBrun NorDig test suite, subset DVB-T/DVB-T2 general test: R&S®BTC-KT3327

The R&S®AVBrun E-Book test suite solution supports the DIGITALEUROPE white paper: Standardized DVB-T2 RF specifications.

  • R&S®AVBrun E-Book test suite: R&S®BTC-KT3312

Digital Terrestrial Multimedia Broadcast (DTMB) is the digital terrestrial television standard adopted in the People’s Republic of China. The standard supports mobile digital

TV service to mobile devices. It is capable of transmitting HDTV to receivers moving at speeds up to 200 km/h.

The R&S®AVBrun DTMB test suite will verify that the service and functional behavior of the DUT are tested to ensure the prerequisites for interoperability are met.

  • R&S®AVBrun DTMB terrestrial (China): R&S®BTC-KT3330

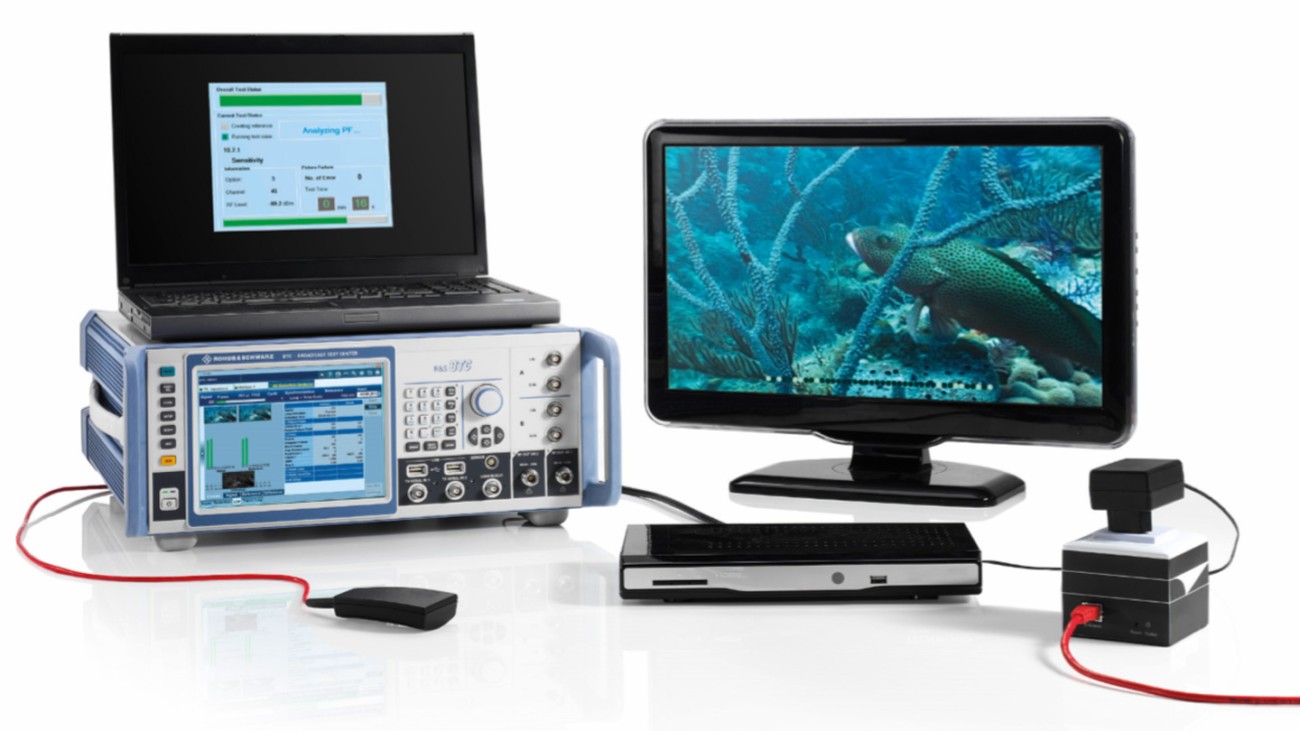

The BTC with AVBrun test suite software offers users an automated test environment
The R&S®BTC with R&S®AVBrun test suite software offers users an automated test environment
