R&S®VCS-4G for virtual center solutions

Voice over IP for air traffic control


Your challenge

To optimize safety and cost structures and improve air traffic control services, air navigation service providers are seeking solutions that will enable them to share resources for air-ground and ground-ground communications between centers. They are even going one step further by defining independent centers as backups for each other. That way, if catastrophic events occur at one center, the backup center can take over the disabled facility’s communications operations, using unaffected air-ground and ground-ground resources.

The challenging part of this approach is providing access to every air-ground and ground-ground resource in normal operations as well as in joint operation scenarios. Furthermore, it is important to keep the system configurations aligned between the centers involved.

Rohde & Schwarz solution

Employing an IP-based communications infrastructure like the R&S®VCS-4G addresses the challenges such virtual center installations are facing.

Resource sharing

The EUROCAE ED-137 standard specifies the use of IP for voice communications in ATC environments. In particular, it defines the interface between a voice communications system (VCS) and radios and between VCSs. Furthermore, it specifies how several VCSs can access the same radios, including the relevant priority concepts in order to ensure reliable operation at all times. On the basis of this standard and the underlying IP infrastructure, VCSs can address any air-ground and ground-ground resource from different regions, even when one facility is not operational.

Reliable communications

Each center has to be aware of the current system configuration and of any changes in the air-ground and ground-ground resources that have been made. Using well-established, intelligent IP mechanisms, VCSs can align their system configurations even if one center has been offline for a while. Having two identical systems that are located several thousand kilometers apart but have access to all air-ground and ground-ground resources boosts the overall availability of the voice communications network: A complete outage at one facility will not affect operations at the other location. If one facility fails, the second center can access unaffected communications assets to ensure continuation of the disabled ATC facility’s communications.

Secure communications

Whenever VCS networks are closely linked, network security becomes crucial. Well-established, intelligent IP mechanisms can be used to control how resources access the system. While these mechanisms have proven themselves in public and private telecommunications installations around the world, isolating the ATC communications infrastructure from public networks and running it as a closed infrastructure is still the most secure solution.

Due to its full IP system architecture and distributed infrastructure, the R&S®VCS-4G is perfectly suited for integration into a virtual center.


The air navigation service providers of Iceland (ISAVIA) and Ireland (IAA) selected Rohde & Schwarz as sole supplier of their new air traffic service (ATS) voice communications control system (VCCS). ISAVIA and IAA operate a virtual control center to connect their Gufunes and Ballygirreen locations.

Rohde & Schwarz has delivered two fully IP ED-137 compliant R&S®VCS-4G voice communications control systems as well as HF receivers from the R&S®M3SR Series4100 radio family. The systems are used to provide communications services, including HF, VHF, SELCAL and SATPHONE, in the Reykjavik and Shanwick oceanic control areas (OCA).

The R&S®VCS-4G solution consists of two independent systems. One is located in ISAVIA’s COM center in Gufunes, Iceland, and one in IAA’s COM center in Ballygirreen, Ireland. The direct link between the two voice communications systems allows advanced scenarios, such as resource sharing for air-ground and ground-ground assets and a virtual center setup.

The concept of a virtual center makes it possible to operate the VCCSs either independently in standalone mode or in joint operations. As a result, operators have access to all resources and functions of both VCCSs. In the event of a catastrophe, such an advanced virtual center approach ensures operational continuity by reassigning resources within a supporting infrastructure to mitigate consequences. In a failure situation, the second center is able to access unaffected assets (e.g. remote air-ground resources) and take over the disabled ATC center’s communications operations.

System overview

  • Rohde & Schwarz controller working positions
  • R&S®Series4100 radios
  • Interconnection to analog and VoIP radios from different suppliers
  • Interconnection to analog telephone lines and ATS-QSIG lines to neighboring ACCs
  • Rohde & Schwarz antenna switching unit
  • Communications infrastructure

The system was integrated by Rohde & Schwarz.

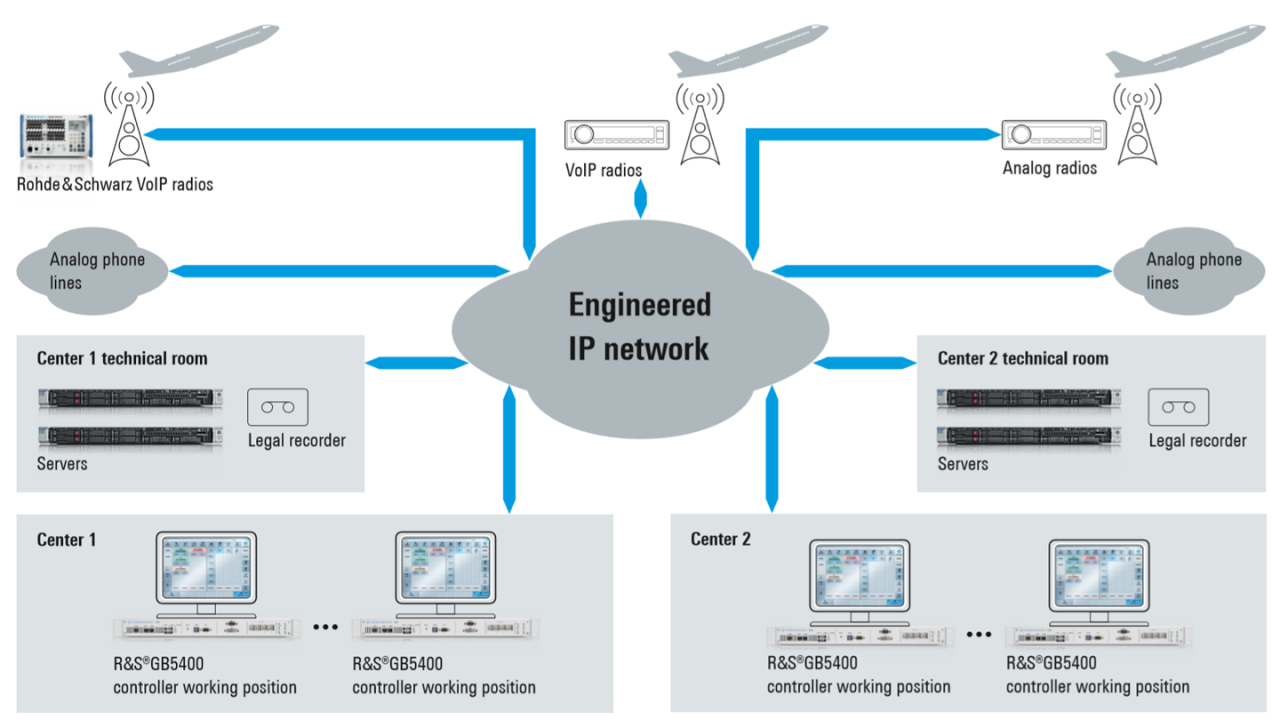

VCS-4G deployment for a virtual center solution
R&S®VCS-4G deployment for a virtual center solution
