R&S®ETC compact TV analyzer

Economical TV transmitter testing

R&S®ETC compact TV analyzer
Open Lightbox
R&S®ETC compact TV analyzer
Open Lightbox
R&S®ETC compact TV analyzer
Open Lightbox

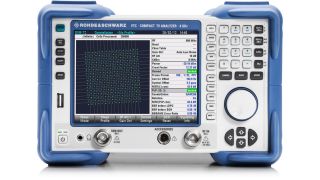

R&S®ETC compact TV analyzer, Front viewR&S®ETC compact TV analyzer, Application ImageR&S®ETC compact TV analyzer, Application Image

Key facts

  • Support of DVB-T2, DVB-T/DVB-H and ISDB-T digital TV standards
  • Wide frequency range up to 3.6 GHz or 8 GHz
  • Precision MER measurement in realtime (typ. 44 dB at 500 MHz)
  • Wide input level range from –76 dBm to +10 dBm
  • Spectrum analyzer DANL of typ. –165 dBm (1 Hz)

Economical TV transmitter testing

The R&S®ETC compact TV analyzer offers a comprehensive set of measurement functions for DVB-T2, DVB-T/DVB-H and ISDB-T digital TV transmitter testing. It is also useful for service and maintenance of TV transmitters as well as for testing modulators in R&D or quality assurance environments. The design of the analyzer is ideal for coverage measurements in broadcast network planning.

Features & benefits

Comprehensive analysis of digital signal transmission

  • Measurement of DVB-T2, DVB-T/DVB-H and ISDB-T digital signal parameters
  • Full support for DVB-T2 single and multi-PLP transmission mode
  • Display of constellation diagram, channel impulse response (echo pattern), shoulder distance of OFDM spectrum and MER(k)
  • High-precision power measurements with Rohde & Schwarz power sensors

Multi-PLP menu
Open Lightbox

Multi-PLP menu

Precise measurement with realtime demodulation

  • FPGA based realtime digital TV demodulator for maximum measurement accuracy
  • Support for TV signal analysis with and without FEC lock
  • Reliable detection of short-term interference thanks to high measurement speed
  • BER measurement and ASI transport stream output
  • Integrated preselection and preamplifier, enabling a wide input level range

Rotated constellation
Open Lightbox

Rotated constellation

Flexible and versatile to use

  • Fast selection of functions via keypad and rotary knob
  • Easy compliance testing based on limit tables
  • Reproducible measurements using user-specific measurement profiles, channel tables, transducers and cable models
  • Efficient coverage analysis for terrestrial broadcast networks with R&S®BCDRIVE
  • Automatic transmitter measurements and documentation

R&S®BCDRIVE broadcast drive test software
Open Lightbox

R&S®BCDRIVE broadcast drive test software

Video/audio decoding and data logging

  • MPEG decoding and analysis
  • Data logging for analysis
  • Storage of measurement data in internal or external memory
  • Editing and customizing of channel tables, measurement profiles, and transducer and limit tables
  • Transfer of measurement results for documentation on PCs
  • Full remote control using SCPI commands

R&S®ETC connected to PC with R&S®ETCView
Open Lightbox

R&S®ETC connected to PC with R&S®ETCView

Available models

Available models
Models
Frequency range

R&S®ETC

Order number 2116.5000.08

Frequency range
100 kHz to 8.0 GHz

Available options

Hardware options
Product
Description
R&S®ETC-B280

Order number 2116.5252.02

Description

MPEG Decoder Board

R&S®ETC-B300

Order number 2116.5230.02

Description

FPGA Extension Board

Software options
Product
Description
R&S®ETC-K1

Order number 2116.5181.02

Description

RF preselection, up to 8 GHz

R&S®ETC-K1

Order number 2116.5098.02

Description

RF preselection, up to 3.6 GHz

R&S®ETC-K10

Order number 2116.5169.02

Description

Tracking generator with scalar network analysis up to 3.6 GHz

R&S®ETC-K10

Order number 2116.5175.02

Description

Tracking generator with scalar network analysis up to 8 GHz

R&S®ETC-K180

Order number 2116.5130.02

Description

Phase, group delay measurement

R&S®ETC-K140

Order number 2116.5100.02

Description

DVB-T/DVB-H analysis

R&S®ETC-K160

Order number 2116.5117.02

Description

ISDB-T analysis

R&S®ETC-K240

Order number 2116.5123.02

Description

DVB-T2 analysis (requires R&S®ETC-B300)

R&S®ETC-K930

Order number 2116.5146.02

Description

Broadcast drive test software access

R&S®ETC-K940

Order number 2116.5152.02

Description

Automatic transmitter measurement, TxCHECK

Accessories
Product
Description
R&S®HA-Z240

Order number 1309.6700.03

Description

GPS Receiver

R&S®FSH-Z14

Order number 1444.0029.02

Description

Directional power sensor

25 MHz to 1 GHz

R&S®FSH-Z44

Order number 1444.0035.02

Description

Directional power sensor

200 MHz to 4 GHz

Order number 1137.9009.02

Description

Wideband Power Sensor

50 MHz to 18 GHz, 100 mW

R&S®RTM-Z3

Order number 1305.0289.02

Description

Soft Case

Stores the R&S®RTM2000 Digital Oscilloscopes and accessories

R&S®ETC-Z1

Order number 2116.5300.00

Description

Hard case – stores the R&S®ETC compact TV analyzer
