EMI test receivers

EMI test receivers

The indispensable core component of every EMC test strategy

EMI test receivers

The indispensable core component of every EMC test strategy

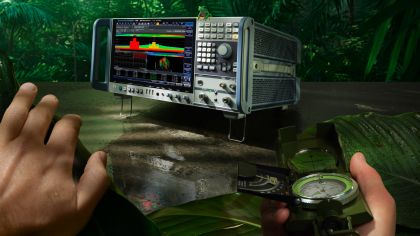

EMI test receivers; extremely accurate instruments designed to detect electromagnetic emissions rigorously, to ensure all emissions conform to the Standard being tested to. Configured to set up running the required tests for parameters defined by the Standards as simply as possible, including automated test routines. R&S EMI test receivers can be much more too, with a full signal and spectrum analyzer in the same instrument.

R&S EMI test receivers support the full range of commercial, automotive and military EMI Standards from all leading Standard authorities, including IEC, CISPR, CENELEC, ETSI, FCC, ANSI, RTCA and MIL-STD. All the latest amendments including the fast FFT-based time-domain scan that makes testing many times faster than conventional frequency scans, are all supported. The instruments cover all required frequency ranges up to 44 GHz, with frequencies up to 500 GHz supported by external mixers.

R&S supplies both full compliance and precompliance EMI test receivers. Fully compliant receivers implement all requirements of the above mentioned Standards, needed for certification testing. Precompliance receivers are an ideal cost/benefit solution for EMI testing during development. They implement bandwidths, limits and detectors defined by the standards, but do not entirely meet the exacting demands of full compliance.

Product List
Compare
Product Name
Application
Frequency range
Displayed average noise level (typical, 1 MHz < f ≤ 1 GHz)
Max. analysis bandwidth
Application
The high end compliance EMI test receiver with best RF characteristics capable for super fast measurements with high bandwidth, Multi CISPR APD or external mixers.
Frequency range
 1 Hz to 8 / 26.5 / 44 GHz
Displayed average noise level (typical, 1 MHz < f ≤ 1 GHz)
- 169 dBm
Max. analysis bandwidth
1 Hz to 80 MHz
Application
he R&S®ESR is a compliance EMI test receiver with an optional DC input and battery pack enabling fast measurements in the lab as well as in the field.
Frequency range
10 Hz to 3.6 / 7 / 26.5 GHz
Displayed average noise level (typical, 1 MHz < f ≤ 1 GHz)
- 168 dBm
Max. analysis bandwidth
10 Hz to 10 MHz, 40 MHz in zero span
Application
The R&S®ESRP is an EMI test receiver for diagnostic measurements during development and precompliance testing as a preparation for the final certification test.
Frequency range
9 kHz to 3.6 / 7 GHz
Displayed average noise level (typical, 1 MHz < f ≤ 1 GHz)
- 162 dBm
Max. analysis bandwidth
10 Hz to 10 MHz, 40 MHz in zero span
Application
The R&S®ESL combines an EMI test receiver and a spectrum analyzer in one instrument, making it versatile for diverse lab applications and EMI analysis.
Frequency range
 9 kHz to 3 / 6 GHz
Displayed average noise level (typical, 1 MHz < f ≤ 1 GHz)
- 160 dBm
Max. analysis bandwidth
 10 Hz to 10 MHz, 20 MHz in zero span
0 of 3 Compare products
Select at least 2 Products
