Key facts

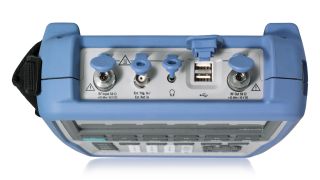

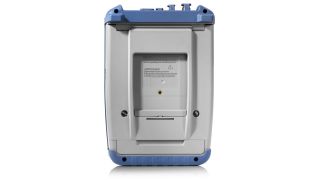

The R&S®Spectrum Rider FPH offers German engineered performance and ergonomic design at an affordable price. The excellent RF performance can capture weak signals with a DANL as low as –163 dBm. The portable R&S®Spectrum Rider FPH weighs only from 2.5 kg and its battery lasts for 4.5 hours or more. Measure anywhere and anytime at an affordable price.
Extendable frequency range
The frequency range of every R&S®Spectrum Rider FPH model can be extended as follows:
Easy to extend the frequency
Keycodes are used for the frequency extension of each model. No downtime, no hassle.
Excellent displayed average noise level (DANL)
The R&S®Spectrum Rider has a DANL as low as –146 dBm (typ.). A low DANL signifies the analyzer’s ability to capture weak signals. Turn on the preamplifier (option) to further increase the sensitivity to –162 dBm (20 MHz to 3 GHz). Preamplifier options:
The preamplifier makes weak signals more visible
Signals too close to the noise floor often go unnoticed. With the preamplifier on, the signal becomes visible, making analysis easier.
Weighs only from 2.5 kg (model dependent)

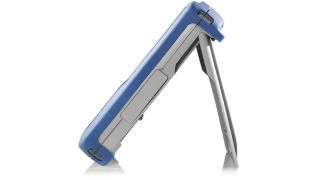

The R&S®Spectrum Rider FPH has an ergonomic design, a small form factor and is lightweight. It comes with a convenient side strap to support your hand during the short measurement period. The holster (R&S®HA-Z322) comes with a harness that is carefully designed to equally distribute weight around the body for hands-free operation.
Hands-free operation with the R&S®HA-Z322 holster
A single charge lasts for a day’s work
The R&S®Spectrum Rider FPH battery can cover a full day of field work. When turned on, the battery takes 4 hours to charge. It charges faster when the device is turned off or with an external charger, where the charging time is only 3.5 hours.
Handheld analyzer battery life
R&S®Spectrum Rider FPH has a longer battery life than any other handheld analyzer
Touchscreen gestures, non-reflective screen and backlit keypad
To enhance user experience, the user interface operates like a smartphone. The touchscreen is more than just the menu bar; users can move the spectrum, zoom in and out of the span, add/delete markers, etc.
Non-reflective screen
Non-reflective screen makes it easier to work outdoors, even in bright sunlight
