1MA074: RSCommander

Versatile Software Tool for Rohde & Schwarz Instruments

RSCommander is a versatile software tool for a wide range of Rohde & Schwarz spectrum-, network analyzers, signal generators and oscilloscopes. It allows for automatic instrument discovery, making screenshots, reading traces, file transfer and simple script creation.

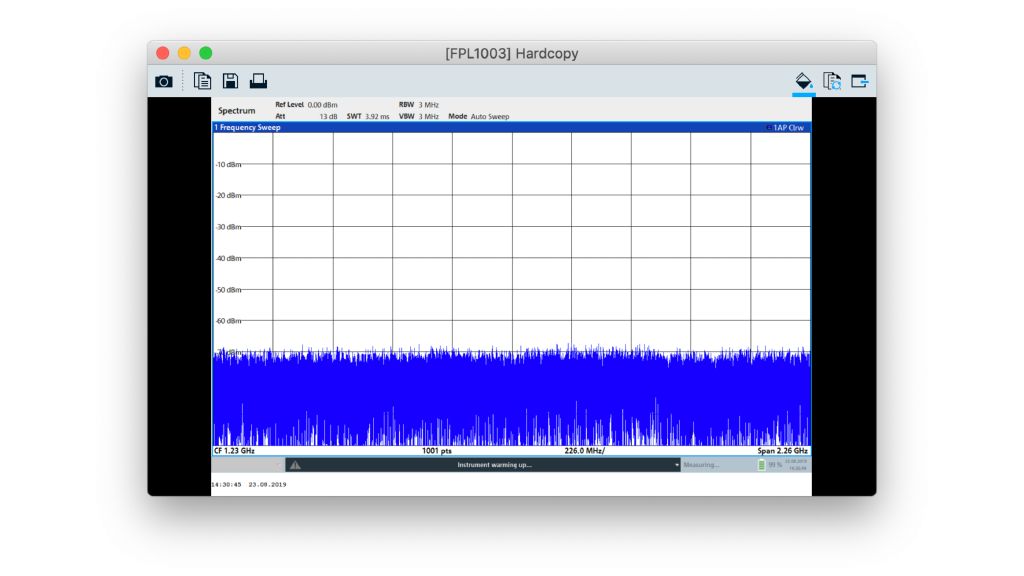

Hardcopy

Take screenshots of your instrument and transfer them directly to your pc.

  • Change between b/w and color pictures
  • Save screenshots as PNG, JPG, BMP, PPM, XBM, XPM or to clipboard
  • Print support

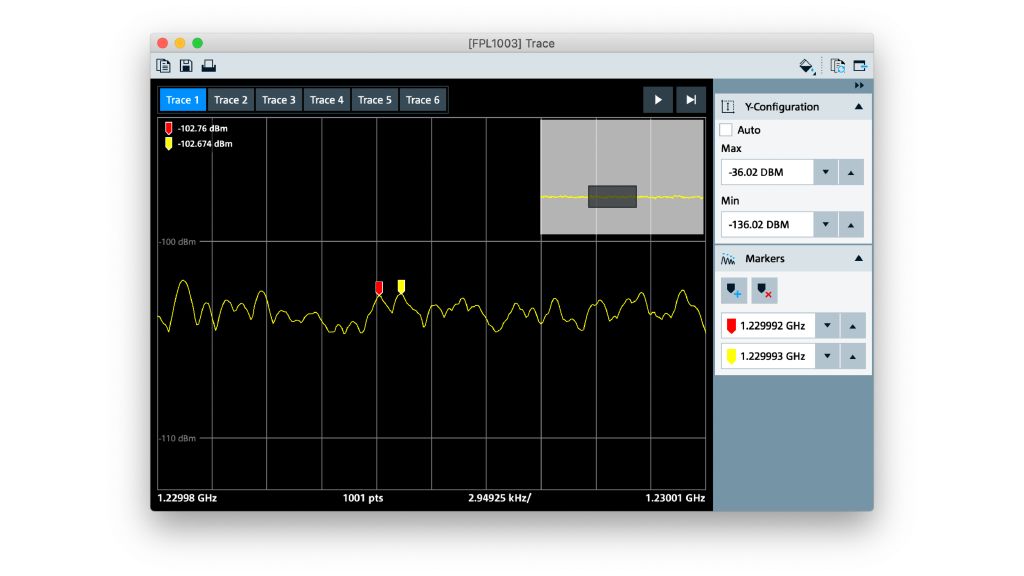

Trace

Transfer traces or waveforms from analyzers and oscilloscopes directly to the pc.

  • Change between different traces / channels
  • Edit the configuration of the displayed y-axis
  • Save as TXT, CSV or image
  • Print support

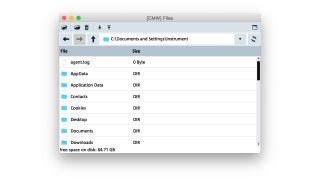

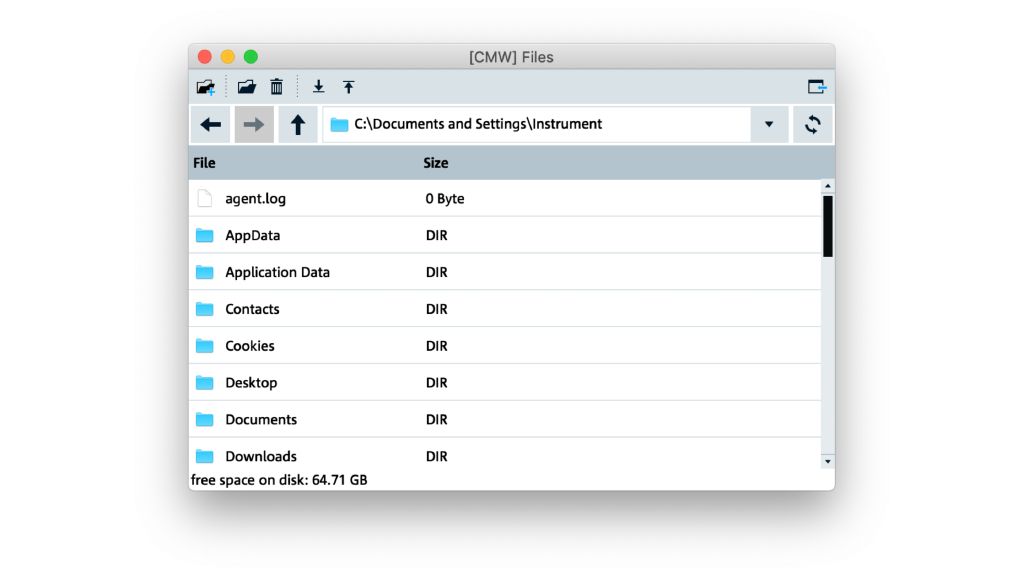

Files

Transfer files from device to pc and vice versa.

  • Read the file catalog from any directory
  • Open files directly from the instrument
  • Drag&Drop files to transfer them to the instrument
  • Create new folders, delete or rename files

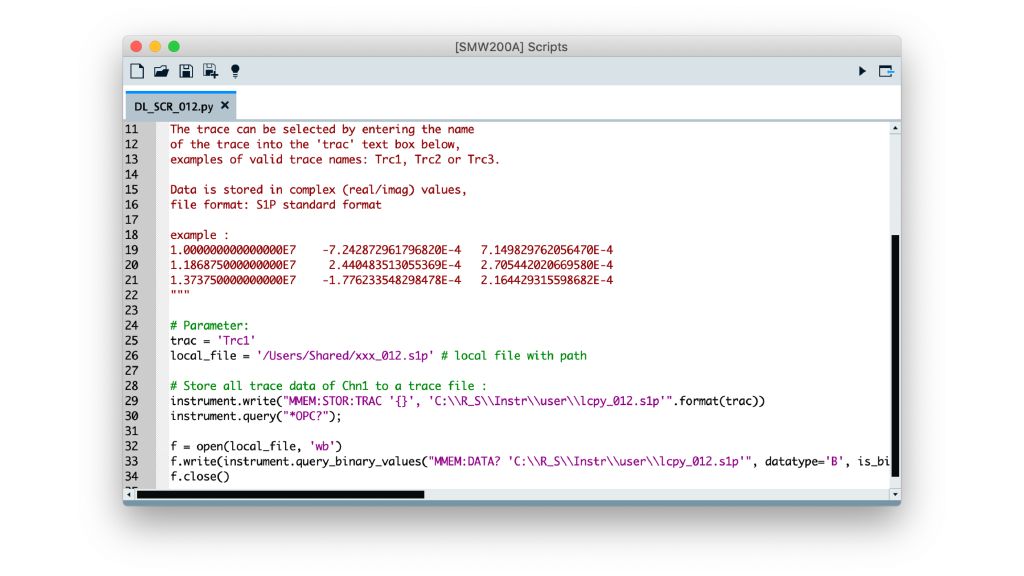

Scripts

Write your own remote control functions in python.

  • Full support of PyVisa
  • Examples for reading traces from network analyzers
  • Simple Python syntax highlighting

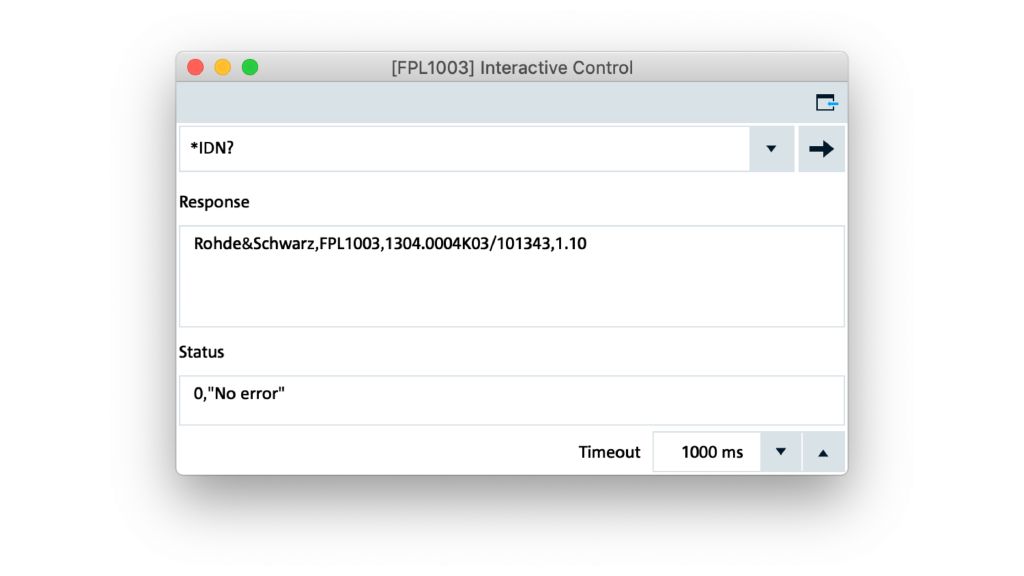

Interactive Control

Quickly execute individual SCPI commands.

  • Control the instrument with simple queries
  • Change the timeout
  • Reads the available scpi commands

Device Support

Download List

Devices Hardcopy Trace Files
R&S®ABFS, R&S®SFQ, R&S®SME, R&S®SMIQ, R&S®SML, R&S®SMR, R&S®SMT - - -
R&S®AFQ, R&S®AMIQ, R&S®CBT, R&S®CMU, R&S®IQR, R&S®SFE - - X
R&S®UPL, R&S®UPV, R&S®NRP, R&S®NRP2 X - -
R&S®AMU, R&S®AREG, R&S®CMW, R&S®CMA, R&S®SMA, R&S®SMATE, R&S®SMB, R&S®SMBV, R&S®SMC, R&S®SMF, R&S®SMG, R&S®SMJ, R&S®SMU, R&S®SMW, R&S®VTE, R&S®VTC, R&S®VTS, R&S®ZNBT, R&S®ZNB, R&S®ZNC, R&S®ZND, R&S®ZVH, R&S®ZVK, R&S®ZVL, R&S®ZVM, R&S®ZVR, R&S®ZVC, R&S®BTC, R&S®ZPH X - X
R&S®ESCI, R&S®ESI, R&S®ESIB, R&S®ESL, R&S®ESPI, R&S®ESR, R&S®ESRP, R&S®ESU, R&S®ESW, R&S®ETL, R&S®FMU, R&S®FSC, R&S®FSE, R&S®FSG, R&S®FPS, R&S®FPH, R&S®FSH, R&S®FSIQ, R&S®FSL, R&S®FSMR, R&S®FSP, R&S®FSQ, R&S®FSU, R&S®FSUP, R&S®FSVR, R&S®FSVA, R&S®FSV, R&S®FSWT, R&S®FSWP, R&S®FSW, R&S®RTH, R&S®RTE, R&S®RTM, R&S®RTB, R&S®RTO, R&S®RTP, R&S®ZVA, R&S®ZVB, R&S®ZVT, R&S®ZNL, R&S®ZNLE, R&S®HMO, R&S®FPL, R&S®FPC X X X

The macOS version can be downloaded for free from the

Mac App Store.

.

Note:

If your device is not supported or if you have found bugs, please send us a message to tm-applications@rohde-schwarz.com.

Name Type Language Version Date Size
1MA074_16e_RSCommander.pdf Application Note English 16e 22.12.2017 2 MB
1MA074_RSCommander_x64_2.1.8.exe Application Note File English 2.1.7 07.08.2018 59 MB
1MA074_OSA.pdf Application Note File English 01 04.01.2018 230 kB
