R&S®FSV3000 Signal and spectrum analyzer

R&S®FSV3000 Signal and spectrum analyzer
Open Lightbox
R&S®FSV3000 Signal and spectrum analyzer
Open Lightbox
R&S®FSV3000 Signal and spectrum analyzer
Open Lightbox
R&S®FSV3000 Signal and spectrum analyzer
Open Lightbox
R&S®FSV3000 Signal and spectrum analyzer, Front LowR&S®FSV3000 Signal and spectrum analyzer, Hero viewR&S®FSV3000 Signal and spectrum analyzer, Front HighR&S®FSV3000 Signal and spectrum analyzer, Back low

Key facts

  • Frequency range from 10 Hz to 4, 7.5, 13.6, 30, 44, 50 GHz
  • Analysis bandwidth up to 200 MHz
  • SSB phase noise at 10 kHz offset (1 GHz): –114 dBc/Hz
  • GUI with multi-touch, SCPI recorder and event based actions
  • Options for analog and digital signal analysis, including 5G NR
  • Design & Elektronik Award Innovator des Jahres

Fast and simple setup for fast access to measurement results

The R&S®FSV3000 signal and spectrum analyzer performs measurements at the push of a button, uses event based actions for capture and makes script programming simple with a SCPI recorder – for quick setups of complex measurements. Fast measurement speeds for high throughput in production applications are another major advantage.

Features & benefits

Ready for 5G and other wireless standards

The R&S®FSV3000 signal and spectrum analyzer is ideal for analyzing wireless communications signals in R&D, system testing, verification and production. With 200 MHz of analysis bandwidth, it can be used to capture two neighboring 5G NR carriers at once. With dedicated options for 5G NR signal analysis, EVM values better than 1% can be achieved for a 100 MHz wide carrier at 28 GHz.

5G NR signal analysis
Open Lightbox

5G NR signal analysis

Analysis of a 5G NR signal with R&S®FSV3-K144 (downlink) and R&S®FSV3-K145 (uplink) options.

Advanced user interface

Setting up complex measurements in no time is the strength of the R&S®FSV3000 signal and spectrum analyzer.


The R&S®FSV3000 excels with fast access to measurement results thanks to its simple and fast setup.

The R&S®FSV3000 features

  • Multitouch display
  • SCPI recorder for easy test program development
  • Event based actions for debugging rare DUT events
  • Smart signal generator control through direct setup access

R&S®FSV3000 event based actions
Open Lightbox

R&S®FSV3000 event based actions

Simple troubleshooting of rare DUT events: choose an event such as a limit line failure or a screenshot from touch-down menus.

High-speed analysis

Fast measurement speed for production


Automated component, module and device production requires spectral measurements and signal demodulation. The R&S®FSV3000 signal and spectrum analyzer performs even complex measurement scenarios in a minimum amount of time.

The enhanced computer power option provides a quad core CPU to accelerate digital signal demodulation. It also adds an internal PCIe 3.0 bus system for the fastest possible transfer of measurement data. In cloud based test systems, the optional 10 Gbit/s LAN interface enables fast I/Q data transfer to the network.

ACLR measurement
Open Lightbox

ACLR measurement

FFT based ACLR measurements provide significant speed improvements over swept measurements. The R&S®FSV3000 still has an excellent dynamic range.

Available models

Available models
Models
Frequency range
Phase noise
DANL @ 1 GHz
Max. analysis bandwidth

R&S®FSV3004

Order number 1330.5000.04

Frequency range
10 Hz - 4 GHz
Phase noise
< –114 dBc (1 Hz)
(f = 1 GHz, 10 kHz offset, option B710)
DANL @ 1 GHz
< –162 dBm/Hz
Max. analysis bandwidth
200 MHz

R&S®FSV3007

Order number 1330.5000.07

Frequency range
10 Hz - 7.5 GHz
Phase noise
< –114 dBc (1 Hz)
(f = 1 GHz, 10 kHz offset, option B710)
DANL @ 1 GHz
< –162 dBm/Hz
Max. analysis bandwidth
200 MHz

R&S®FSV3013

Order number 1330.5000.13

Frequency range
10 Hz - 13.6 GHz
Phase noise
< –114 dBc (1 Hz)
(f = 1 GHz, 10 kHz offset, option B710)
DANL @ 1 GHz
< –162 dBm/Hz
Max. analysis bandwidth
200 MHz

R&S®FSV3030

Order number 1330.5000.30

Frequency range
10 Hz - 30 GHz
Phase noise
< –114 dBc (1 Hz)
(f = 1 GHz, 10 kHz offset, option B710)
DANL @ 1 GHz
< –162 dBm/Hz
Max. analysis bandwidth
200 MHz

R&S®FSV3044

Order number 1330.5000.43

Frequency range
10 Hz - 44 GHz
Phase noise
< –114 dBc (1 Hz)
(f = 1 GHz, 10 kHz offset , option B710)
DANL @ 1 GHz
< –162 dBm/Hz
Max. analysis bandwidth
200 MHz

R&S®FSV3050

Order number 1330.5000.50

Frequency range
10 Hz - 50 GHz
Phase noise
< –114 dBc (1 Hz)
(f = 1 GHz, 10 kHz offset, option B710)
DANL @ 1 GHz
< –162 dBm/Hz
Max. analysis bandwidth
200 MHz

Available options

Performance
Product
Description
R&S®FSV3-B4

Order number 1330.3794.02

Description

OCXO frequency reference

R&S®FSV3-B6

Order number 1330.3913.02

Description

10 Gbit/s LAN interface

(requires R&S®FSV3-B114)

R&S®FSV3-B8E

Order number 1346.4337.02

Description

Resolution bandwidth up to 40 MHz

R&S®FSV3-B11

Order number 1330.3865.02

Description

YIG preselector bypass

R&S®FSV3-B21

Order number 1330.4010.02

Description

LO/IF connections for external mixers

R&S®FSV3-B25

Order number 1330.4078.02

Description

Electronic attenuator, 1 dB steps

R&S®FSV3-K703

Order number 1330.7502.02

Description

1 GHz reference

R&S®FSV3-B114

Order number 1330.4910.03

Description

Enhanced computing power

R&S®FSV3-B710

Order number 1346.4950.04

Description

Enhanced performance for FSV3004

R&S®FSV3-B710

Order number 1346.4950.07

Description

Enhanced performance for FSV3007

R&S®FSV3-B710

Order number 1346.4950.13

Description

Enhanced performance for FSV3013

R&S®FSV3-B710

Order number 1346.4950.30

Description

Enhanced performance for FSV3030

R&S®FSV3-B710

Order number 1346.4950.43

Description

Enhanced performance for FSV3044

R&S®FSV3-B710

Order number 1346.4950.50

Description

Enhanced performance for R&S®FSV3050

Preamplifier
Product
Description
R&S®FSV3-B24

Order number 1330.4049.07

Description

RF preamplifier for 4 and 7.5 GHz models

R&S®FSV3-B24

Order number 1330.4049.13

Description

RF preamplifier for 13.6 GHz models

R&S®FSV3-B24

Order number 1330.4049.44

Description

RF preamplifier for 44 GHz models

R&S®FSV3-B24

Order number 1330.4049.30

Description

RF preamplifier for 30 GHz models

R&S®FSV3-B24

Order number 1330.4049.49

Description

RF preamplifier for 50 GHz models

R&S®FSV3-B24

Order number 1330.4049.50

Description

RF preamplifier for 50 GHz models (export restricted)

Analysis bandwidth
Product
Description
R&S®FSV3-B40

Order number 1330.4103.02

Description

40 MHz analysis bandwidth

R&S®FSV3-B200

Order number 1330.4132.02

Description

200 MHz analysis bandwidth

Extras
Product
Description
R&S®FSV3-B1

Order number 1330.5700.02

Description

Side carry handles

R&S®FSV3-B3

Order number 1330.3765.02

Description

Audio demodulator

R&S®FSV3-B5

Order number 1330.3820.02

Description

Additional interfaces

R&S®FSV3-B5E

Order number 1330.3820.03

Description

Additional interfaces

R&S®FSV3-B10

Order number 1330.3859.02

Description

External generator control

R&S®FSV3-B18

Order number 1330.4003.02

Description

Spare hard drive

(R&S®FSV3-B20 option required)

R&S®FSV3-B20

Order number 1330.3971.02

Description

Hard drive removable

R&S®FSV3-B28V

Order number 1330.6664.02

Description

Noise source control via BNC

Analog baseband
Product
Description
R&S®FSV3-B271

Order number 1330.4190.02

Description

Analog baseband inputs, 2 x 200 MHz

(R&S®FSV3-B200, R&S®FSV3-B400, R&S®FSV3-B600 or R&S®FSV3-B1000 option required)

R&S®FSV3-B271

Order number 1330.4190.03

Description

Analog baseband inputs, 2 x 200 MHz

(not available in combination with R&S®FSV3-B200, R&S®FSV3-B400, R&S®FSV3-B600 or R&S®FSV3-B1000 option)

Cellular systems
Product
Description
R&S®FSV3-K10

Order number 1330.5039.02

Description

GSM/EDGE/EDGE evolution/VAMOS measurements

R&S®FSV3-K72

Order number 1330.5080.02

Description

3GPP FDD (WCDMA) BS measurements

(incl. HSDPA and HSDPA+)

R&S®FSV3-K73

Order number 1330.5097.02

Description

3GPP FDD (WCDMA) MS measurements (incl. HSUPA and HSUPA+)

R&S®FSV3-K100

Order number 1330.5145.02

Description

EUTRA/LTE FDD BS measurements

R&S®FSV3-K101

Order number 1330.5151.02

Description

EUTRA/LTE FDD UE measurements

R&S®FSV3-K102

Order number 1330.5168.02

Description

EUTRA/LTE BS MIMO measurements

(R&S®FSV3-K100 or R&S®FSV3-K104 option required)

R&S®FSV3-K103

Order number 1330.7231.02

Description

EUTRA/LTE UL advanced UL measurements

(R&S®FSV3-K101 or R&S®FSV3-K105 option required)

R&S®FSV3-K104

Order number 1330.5174.02

Description

EUTRA/LTE TDD BS measurements

R&S®FSV3-K105

Order number 1330.5180.02

Description

EUTRA/LTE TDD uplink measurements

R&S®FSV3-K106

Order number 1346.3418.02

Description

EUTRA/LTE NB-IoT downlink measurements

R&S®FSV3-K144

Order number 1330.7219.02

Description

3GPP 5G-NR DL measurements

R&S®FSV3-K147

Order number 1346.4250.02

Description

3GPP 5G-NR combined DL ACLR/SEM/EVM measurements

(R&S®FSV3-K144 option required)

R&S®FSV3-K145

Order number 1330.7225.02

Description

3GPP 5G-NR UL measurements

R&S®FSV3-K148

Order number 1346.4914.02

Description

5G NR R16 Extension for UL/DL

(FSV3-K144 or FSV3-K145 option required)

R&S®FSV3-K171

Order number 1346.5362.02

Description

5G NR Rel. 17 extension for  UL/DL

(R&S®FSV3-K148 and R&S®FSV3-K144 or R&S®FSV3-K145 option required)

R&S®FSV3-K175

Order number 1346.6452.02

Description

O-RAN measurements

Requires R&S®FSV3-K10x or R&S®FSV3-K14x

Wireless
Product
Description
R&S®FSV3-K8

Order number 1346.5679.02

Description

Bluetooth BR/EDR/LE measurements

R&S®FSV3-K91

Order number 1330.5100.02

Description

WLAN 802.11a/b/g measurements

R&S®FSV3-K91N

Order number 1330.5139.02

Description

WLAN 802.11n measurements

(R&S®FSV3-K91 option required)

R&S®FSV3-K91AC

Order number 1330.5116.02

Description

WLAN 802.11ac measurements

(R&S®FSV3-K91 option required)

R&S®FSV3-K91AX

Order number 1346.3399.02

Description

WLAN 802.11ax measurements

(R&S®FSV3-K91 option required)

R&S®FSV3-K91P

Order number 1330.5122.02

Description

WLAN 802.11p measurements

(R&S®FSV3-K91 option required)

R&S®FSV3-K91BE

Order number 1346.4966.02

Description

WLAN 802.11be measurements

(R&S®FSV3-K91 option required)

General purpose
Product
Description
R&S®FSV3-K7

Order number 1330.5022.02

Description

Analog modulation analysis for AM/FM/φM

R&S®FSV3-K9

Order number 1346.3676.02

Description

Power Sensor Support

R&S®FSV3-K18

Order number 1346.3347.02

Description

Amplifier measurements

R&S®FSV3-K18D

Order number 1346.3353.02

Description

Direct DPD measurements

(R&S®FSV3-K18 option required)

R&S®FSV3-K18F

Order number 1346.4408.02

Description

Frequency response measurements

(R&S®FSV3-K18 option required)

R&S®FSV3-K18M

Order number 1345.1486.02

Description

Memory-Polynomial DPD

(R&S®FSV3-K18 and R&S®FSV3-K18D option required)

R&S®FSV3-K30

Order number 1330.5045.02

Description

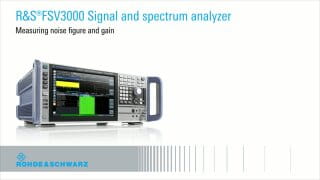

Noise figure and gain measurements

R&S®FSV3-K40

Order number 1330.5051.02

Description

Phase noise measurements

Order number 1330.5068.02

Description

EMI measurements

R&S®FSV3-K54C

Order number 1346.3624.02

Description

CISPR Calibration for FSC3-K54

R&S®FSV3-K70

Order number 1330.5074.02

Description

Vector signal analysis

R&S®FSV3-K70M

Order number 1346.3376.02

Description

Multi-modulation analysis

(R&S®FSV3-K70 option required)

R&S®FSV3-K70P

Order number 1346.3382.02

Description

BER PRBS measurements

(R&S®FSV3-K70 option required)

R&S®FSV3-K96

Order number 1346.6469.02

Description

OFDM signal analysis

R&S®FSV3-K544

Order number 1346.3630.02

Description

User defined frequency correction by SnP file

R&S®FSV3-K553

Order number 1346.4889.02

Description

External frontend control

Radar
Product
Description
R&S®FSV3-K6

Order number 1346.3330.02

Description

Pulse measurements

R&S®FSV3-K60

Order number 1346.4350.02

Description

Transient measurements

R&S®FSV3-K60C

Order number 1346.4366.02

Description

Transient chirp measurements

(R&S®FSV3-K60 option required)

R&S®FSV3-K60H

Order number 1346.4372.02

Description

Transient hop measurements

(R&S®FSV3-K60 option required)

R&S®FSV3-K60P

Order number 1346.6298.02

Description

Transient phase noise measurements

R&S®FSV3-K60C or R&S®FSV3-K60H option required.

Instrument security
Product
Description
R&S®FSV3-B33

Order number 1330.4861.02

Description

USB mass memory write protection

R&S®FSV3-K33

Order number 1346.3360.02

Description

Security write protection for solid-state drive

Health and utilization
Product
Description
R&S®FSV3-K980

Order number 1346.4943.02

Description

Health and Utilization Monitoring Service

PC software
Product
Description

Order number 1345.1011.06

Description

Software

Brings the experience and power of Rohde & Schwarz signal analysis to PC and cloud

Order number 1345.1105.06

Description

R&S®VSE-K91AX

Order number 1345.1411.06

Description

IEEE 802.11ax measurements

WLAN signal analysis

R&S®FSPC

Order number 1310.0002.03

Description

Licence Dongle

R&S®FSPC-FL

Order number 1310.0002.04

Description

Floating license dongle

R&S®VSE-SWM

Order number 1320.7622.81

Description

Software maintenance

General purpose
Product
Description
R&S®VSE-K7

Order number 1320.7539.06

Description

Analog modulation analysis (AM/FM/φM)

Modulation analysis for AM/FM/φM modulated single carriers

R&S®VSE-K70

Order number 1320.7522.06

Description

Vector signal analysis

R&S®VSE-K96

Order number 1320.7922.06

Description

OFDM signal analysis

R&S®VSE-K544

Order number 1309.9580.06

Description

User-defined Frequency Correction by SnP File

R&S®VSE-K18

Order number 1345.1434.06

Description

Amplifier measurements

R&S®VSE-K18F

Order number 1345.1457.06

Description

Frequency response measurements

R&S®VSE-K18D

Order number 1345.1440.06

Description

Direct DPD measurements

R&S®VSE-K18M

Order number 1345.1492.06

Description

Memory polynomial DPD

R&S®VSE-K70M

Order number 1345.1211.06

Description

Multi-modulation analysis

R&S®VSE-K70 option required

R&S®VSE-K70P

Order number 1345.1228.06

Description

BER PRBS measurements

R&S®VSE-K70 option required

Radar
Product
Description
R&S®VSE-K6

Order number 1320.7516.06

Description

Pulse measurements application

R&S®VSE-K60

Order number 1320.7868.06

Description

Transient measurements

Transient analysis

R&S®VSE-K60C

Order number 1320.7874.06

Description

Transient chirp measurements

Transient analysis, requires R&S®VSE-K60

R&S®VSE-K60H

Order number 1320.7880.06

Description

Transient hop measurements

Transient analysis, requires R&S®VSE-K60

Cellular systems
Product
Description
R&S®VSE-K72

Order number 1320.7580.06

Description

3GPP FDD measurements

WCDMA signal analysis

R&S®VSE-K100

Order number 1320.7545.06

Description

EUTRA/LTE FDD uplink and downlink measurement application

LTE signal analysis

R&S®VSE-K10

Order number 1320.7574.06

Description

GSM measurements

GSM/EDGE/ EDGE Evolution

R&S®VSE-K102

Order number 1320.7551.06

Description

EUTRA/LTE advanced and MIMO (downlink)

LTE signal analysis

R&S®VSE-K104

Order number 1320.7568.06

Description

EUTRA/LTE TDD uplink and downlink measurement application

LTE signal analysis

R&S®VSE-K106

Order number 1320.7900.06

Description

EUTRA/LTE

Narrowband IoT analysis

R&S®VSE-K144

Order number 1309.9574.06

Description

5G NR uplink and downlink measurement application

R&S®VSE-K175

Order number 1350.7020.06

Description

O-RAN measurements

Wireless
Product
Description
R&S®VSE-K91

Order number 1320.7597.06

Description

IEEE 802.11a/b/g measurements

WLAN signal analysis

R&S®VSE-K91P

Order number 1320.7680.06

Description

IEEE 802.11p measurements

WLAN signal analysis

R&S®VSE-K91N

Order number 1320.7600.06

Description

IEEE 802.11n measurements

WLAN signal analysis

R&S®VSE-K91AC

Order number 1320.7616.06

Description

IEEE 802.11ac measurements

WLAN signal analysis

Noise sources
Product
Description

Order number 1338.8008.18

Description

Smart noise source 10 MHz to 18 GHz

Order number 1338.8008.26

Description

Smart noise source 10 MHz to 26.5 GHz

Order number 1338.8008.40

Description

Smart noise source 100 MHz to 40 GHz

Order number 1338.8008.55

Description

Smart noise source 100 MHz to 55 GHz

Order number 1338.8008.67

Description

Smart noise source 100 MHz to 67 GHz

Order number 1338.8008.90

Description

Smart noise source 60 GHz to 90 GHz

Order number 1338.8008.11

Description

Smart noise source 75 GHz to 110 GHz

R&S®FSV3000 - Product videos

Ideal for 5G NR production testing

Capture two adjacent 100 MHz carriers for further analysis with the 5G NR option.

06-Mar-2019

SCPI recorder

Translate manual operation into a program that can be saved in your preferred programming language.

06-Mar-2019

Event-based actions

Choose an event and an action from drop-down menus for efficient troubleshooting

06-Mar-2019

Intuitive user interface

The R&S®FSV3000 is as easy to operate as a smartphone.

06-Mar-2019

R&S®FSV3000 - Application videos

Signal quality and distortion measurements on an amplifier

This video shows how to measure the distortions caused by an amplifier under test.

12-Mar-2019

Measuring phase noise of frequency drifting oscillators

This video shows how to measure the phase noise of a frequency drifting DUT using the IQ/FFT mode of the R&S®FSV3-K40 phase noise measurement option.

12-Mar-2019

Noise figure and gain measurements on an amplifier

This video shows how to measure the noise figure and gain measurements of an amplifier under test using a noise source.

12-Mar-2019

Solutions for

Wireless communications
Wireless communications

Leading solutions for today and tomorrow's connected world

More information

RF & microwave components
RF & microwave components

Solutions to optimize the performance of your components and devices

More information

Automotive
Automotive

Development and production solutions for tomorrow's automotive industry

More information

Aerospace & defense
Aerospace & defense

Measurement solutions for applications including Satellite, Radar/EW and Avionics

More information

Spectrum monitoring
Spectrum monitoring

Innovative solutions for regulatory authorities

More information

Request information

Do you have questions or need additional information? Simply fill out this form and we will get right back to you.

Marketing permission

Your request has been sent successfully. We will contact you shortly.
An error is occurred, please try it again later.
General and legal information

Manufacturer's recommended retail price (MSRP). The price shown does not include VAT. Prices and offers are only intended for entrepreneurs and not for private end consumers.

You may use the electronic signature via DocuSign to submit your information to enroll with the Rohde & Schwarz Customer Delegated Administration program. DocuSign processes the information provided according to their . The minimum system requirements for using the DocuSign system may change over time. The current system requirements are found

Terms & Conditions of the Prize Draw 10 years Rohde & Schwarz oscilloscopes

1. The prize draw “10 years Rohde & Schwarz oscilloscopes” (herein referred to as “Draw”) is organized by Rohde & Schwarz GmbH & Co. KG, Mühldorfstraße 15, 81671 Munich, Germany, Tel. +49 89 41 29 0 (herein referred to as “R&S).

2. All participators can register to the draw during January 01, 2020 to December 31, 2020 with their name, company name and business e-mail.

3. Participation is free of charge and not dependent on the purchase of goods or services.

4. The draw is only open to legal entities and only the legal entities are able to win the prizes. An individual person is not allowed to participate on its own name and its own account but as a representative of a legal entity filing the participation form in the name of and on behalf of the legal entity.

5. The prizes to win are 1 of 10 R&S®RTB2000 within the time frame January 1, 2020 to December 31, 2020:

Prize: 1x R&S®RTB2000 Digital Oscilloscope

6. The draw takes place at Rohde & Schwarz headquarters, Muehldorstrasse 15, 81671 Munich. The winner of the prizes will be informed by e-mail within 5 (5) working days.

7. The authorized representative of the legal entity shall inform Rohde & Schwarz about the acceptance of the price. In case of the denial of the acceptance, or no answer within two (2) weeks, a new winner will be drawn. If no winner can be determined within four (4) weeks, the draw ends and the prize forfeit.

8. R&S’ employees and members of their families and also person being familiar with the process of the draw and members of their families are excluded from filling the participation form.

9. No cash equivalent or exchange of prizes is allowed. Prizes are non-transferable. All taxes, levies, duties, fees and other charges levied in the participant´s country shall be borne by the participant.

10. Personal data will be processed only for the purpose of this prize draw and deleted four (4) weeks after the draw, if not agreed otherwise.

11. Any Participant who does not comply with these Terms & Conditions may be disqualified by R&S from this Competition. In such cases, prizes can also be withdrawn retrospectively. In case a prize is withdrawn retrospectively due to the non-compliance with these Terms & Conditions, it shall be returned by the respective participant at his cost to R&S’ address mentioned under Nr.1 and a new winner will be drawn.

12. The participants cannot claim the prizes of this draw and no legal recourse is permitted in this respect.

13. The draw and any contractual relationship arising therefrom between R&S and the respective participant shall be governed by and construed in accordance with the laws of Germany, without any recourse to the conflict of laws. The courts of Munich, Germany, shall have exclusive jurisdiction in case of any disputes arising directly or indirectly from the participation in this Competition.

* “fast delivery” inside 7 working days applies to the Rohde & Schwarz in-house procedures from order processing through to available ex-factory to ship.
