R&S®RTC1000 oscilloscope

R&S®RTC1000 oscilloscope
Open Lightbox
R&S®RTC1000 oscilloscope
Open Lightbox
R&S®RTC1000 oscilloscope
Open Lightbox
R&S®RTC1000 oscilloscope
Open Lightbox
R&S®RTC1000 Oscilloscope, Front view R&S®RTC1000 Oscilloscope, Side view R&S®RTC1000 Oscilloscope, Hero view R&S®RTC1000 Oscilloscope, Application Image

Key facts

  • Bandwidth: 50 MHz to 300 MHz
  • Max. sample rate: 2 Gsample/s
  • Max. memory depth: 2 Msample
  • MSO: 8 digital channels, optional, retrofittable
  • Pattern generator: 4-bit patterns up to 50 Mbit/s

Starting at €1,030

Great value

High sensitivity, multifunctionality and a great price - that is what makes the R&S®RTC1000 oscilloscope so special. From embedded developers to service technicians to educators - the wide range of functions address a broad group of users. State-of-the-art, high-performance technology in a fanless design meets the high requirements of today's customers.

Features & benefits

Top-class hardware based acquisition

Top-class hardware-based acquisition for precise measurement results

With a sampling rate of up to 2 Gsample/s and a memory depth of up to 2 Msample, the R&S®RTC1000 oscilloscope excels in its class. A waveform update rate of more than 10 000 waveforms/s ensures a responsive instrument that reliably catches signal faults. Included tools provide quick results, e.g. QuickMeas, mask tests, FFT, math, cursors and automatic measurements (including statistics).

The R&S®RTC1000 provides top-class hardware based acquisition for precise measurement results
Open Lightbox

The R&S®RTC1000 provides top-class hardware based acquisition for precise measurement results

Versatile measurement functions

QuickView: key results at the push of a button

  • Wide selection of automatic measurement functions
  • QuickView: key results at the push of a button
  • Mask test: a new mask can be easily created with just a few keystrokes
  • FFT: the easy way to analyze the signal spectrum

Versatile measurement functions
Open Lightbox

Versatile measurement functions

QuickView: key results at the push of a button

Logic analysis with the MSO option

Eight additional digital channels

The R&S®RTC-B1 option turns every R&S®RTC1000 into an intuitive-to-use MSO with eight additional digital channels. The oscilloscope captures and analyzes signals from analog and digital components in an embedded design - synchronously and time-correlated to each other. For example, the delay between the input and output of an A/D converter can be conveniently determined using the cursor measurements.

8-bit DAC signal change
Open Lightbox

8-bit DAC signal change

The R&S®RTC1000 captures and analyzes analog and digital signals synchronously and time-correlated to each other

Serial bus analysis

Hardware- based trigggering and decoding

Protocols such as I²C, SPI and CAN/LIN frequently transfer control messages between integrated circuits. The R&S®RTC1000 has versatile options for protocol- specific triggering and decoding of serial interfaces. Selective acquisition and analysis of relevant events and data is possible. With the hardware-based implementation, smooth operation and a high update rate are ensured even for long acquisitions. This is advantageous, for example, for capturing multiple packetized serial bus signals.

Hardware- based trigggering and decoding
Open Lightbox

Hardware- based trigggering and decoding

Support for triggering and decoding of I²C, of 2-wire, 3-wire SPI buses. You can setup decoding in seconds

Digital voltmeter

Measure and display electrical potential

For simultaneous measurements, the R&S®RTC1000 features a three-digit digital voltmeter (DVM) and six-digit frequency counter on each channel. Provided measurement functions include DC, AC + DC (RMS) and AC (RMS).

Voltmeter measurements using an oscilloscope
Open Lightbox

Voltmeter measurements using an oscilloscope

Waveform and pattern generator

Generate analog and digital stimuli

The integrated R&S®RTC-B6 waveform and pattern generator up to 50 Mbit/s is useful for educational purposes and for implementing prototype hardware. In addition to common sine, square/pulse, ramp and noise waveforms, it outputs 4-bit patterns. Waveforms and patterns can be imported as CSV files or copied from oscilloscope waveforms. You can preview signals before playing them back to quickly check signal correctness. Predefined patterns for e.g. I2C, SPI, UART and CAN/LIN are provided.

Waveform and pattern generator
Open Lightbox

Waveform and pattern generator

In addition to common sine, square/pulse, ramp and noise waveforms, it outputs pre- and user-defined 4-bit signal patterns

Component Tester

Determining current-voltage characteristics with the oscilloscope

You will also benefit from the included component tester. A 50 Hz and a 200 Hz measuring frequency are provided to support your potentially tedious search for faulty components. And since a picture says more than a thousand words - or rather a thousand values - you will be able to tell at a glance if your error analysis is on track.

Component tester
Open Lightbox

Component tester

Charactersitic of a Zener diode with approx. 5 V breakdown voltage

Available models

Available models
Models
Bandwidth
Channels
Sample rate
Max. memory depth
Optional MSO
Starting at

R&S®RTC1002

Order number 1335.7500P02

Bandwidth
50 MHz
Channels
2
Sample rate
2 Gsample
Max. memory depth
2 Mpts
Optional MSO
8 digital channels
Starting at
€1,030

R&S®RTC1002 + RTC-B220

Order number 1335.7500P72

Bandwidth
70 MHz
Channels
2
Sample rate
2 Gsample
Max. memory depth
2 Mpts
Optional MSO
8 digital channels
Starting at
€1,140

R&S®RTC1002 + RTC-B221

Order number 1335.7500P12

Bandwidth
100 MHz
Channels
2
Sample rate
2 Gsample
Max. memory depth
2 Mpts
Optional MSO
8 digital channels
Starting at
€1,270

R&S®RTC1002 + RTC-B222

Order number 1335.7500P22

Bandwidth
200 MHz
Channels
2
Sample rate
2 Gsample
Max. memory depth
2 Mpts
Optional MSO
8 digital channels
Starting at
€1,840

R&S®RTC1002 + RTC-B223

Order number 1335.7500P32

Bandwidth
300 MHz
Channels
2
Sample rate
2 Gsample
Max. memory depth
2 Mpts
Optional MSO
8 digital channels
Starting at
€2,200
Specifications
Vertical system
Analog channels 2
Digital channels (opt.) 8
Bandwidth (-3 dB) R&S®RTC1002 (with R&S®RTC-B220/-B221/-B222/-B223) 50 MHz, 70 MHz, 100 MHz, 200 MHz, 300 MHz
Rise time R&S®RTC1002 R&S®RTC-B220/-B221/-B222/-B223) 7 ns, 5 ns, 3.5 ns, 1.75 ns, 1.15 ns
Input impedance 1 MΩ ± 2% || 14 pF ± 2 pF
Input sensitivity max. bandwidth in all ranges 1 mV/div to 10 V/div
ADC resolution 8 bit, up to 16 bit with high resolution-decimation mode
DC gain accuracy offset and position = 0, maximum operating temperature change of ±5°C after self-alignment input sensitivity all ranges: 3 %
Acquisition system
Realtime sampling rate 1 Gsample/s; 2 Gsample interleaved
Acquisition memory 1 Msample; 2 Msample interleaved
Max. acquisition rate 10 000 waveforms/s
Horizontal system
Timebase range 1 ns/div to 100 s/div
Accuracy (after delivery/calibration) ±50 ppm
Channel-to-channel skew max. 1 ns (meas.)
Channel deskew ±120 ns
Trigger system
Standard Trigger types edge, width, video (PAL, SECAM, PAL-M, SDTV, HDTV) pattern, timeout
Optional Trigger types I2C, SPI, UART/RS-232/RS-422/RS-485, CAN/LIN
Trigger sensitivity with DC, AC, LF reject input sensitivity ≥ 5 mV/div: < 0.8 div (meas.) input sensitivity < 5 mV/div: < 1.5 div (meas.) with HF reject all input sensitivities: < 1 div (meas.) with noise rejection input sensitivity > 5 mV/div: < 1.5 div (meas.)
Analysis and measurement functions
Automatic measurements  31
Cursor measurements 13
Waveform mathematics addition, subtraction, multiplication, division, FFT
Mask testing
Mask definition elementary (tolerance mask around the signal)
Protocol trigger and decode
Supported protocols I2C, SPI, UART/RS-232/ RS-422/RS-485, CAN, LIN
Waveform generator
Resolution 8 bit
Sample rate 978 ksample/s
Amplitude high Z; 50 Ω 60 mV to 6 V (Vpp); 30 mV to 3 V (Vpp)
DC offset sine: 0.1 Hz to 50 kHz
pulse/rectangle and ramp/triangle: 0.1 Hz to 10 kHz
Logic analyzer (MSO) functionality
Digital input channels 8
MSO Memory depth 1 Msample for every channel
MSO Bandwidth 300 MHz (meas.)
MSO sampling rate 1 Gsample/s
MSO input impedance 100 kΩ ± 2 % || ~4 pF (meas.) at probe tips
Parallel buses up to 2
General data
Dimensions W x H x D 285 mm × 175 mm × 140 mm
(11.22 in × 6.89 in × 5.51 in)
Weight 1.7 kg (3.75 lb)
Display 6.5" VGA color display (640 × 480 pixel)
Interfaces 1 x USB host, USB device, LAN
Operating system Embedded

Available options

General
Product
Description

Order number 1335.7281.03

Description

Mixed signal upgrade for non-MSO-models, 300 MHz

Turns the R&S®RTC1002 oscilloscopes into fast, precise and easy-to-use mixed signal oscilloscopes (MSO).

R&S®RTC-B6

Order number 1335.7298.03

Description

Waveform generator

Adds a 50 kHz signal generator and a 4-bit pattern generator to your R&S®RTC1002 oscilloscopes.

Bandwidth upgrade
Product
Description
R&S®RTC-B220

Order number 1335.7300.03

Description

Bandwidth upgrade of the R&S®RTC1002 to 70 MHz bandwidth

R&S®RTC-B221

Order number 1335.7317.03

Description

Bandwidth upgrade of the R&S®RTC1002 to 100 MHz bandwidth

R&S®RTC-B222

Order number 1335.7275.03

Description

Bandwidth upgrade of the R&S®RTC1002 to 200 MHz bandwidth

R&S®RTC-B223

Order number 1335.7323.03

Description

Bandwidth upgrade of the R&S®RTC1002 to 300 MHz bandwidth

Serial triggering and decoding
Product
Description

Order number 1335.7230.03

Description

I²C/SPI serial triggering and decoding

Triggering and decoding of I²C and 2-wire, 3-wire or 4-wire SPI buses

Order number 1335.7246.03

Description

UART/RS-232/RS-422/RS-485 serial triggering and decoding

Triggering and decoding of UART based protocols and RS-232, RS-422 as well as RS-485 buses

Order number 1335.7252.03

Description

CAN/LIN serial triggering and decoding

Triggering and decoding of CAN and LIN interfaces

General accessories
Product
Description
R&S®RTC-Z3

Order number 1333.0867.02

Description

Soft case

Stores the R&S®RTC1002 oscilloscope and accessories.

Order number 1335.7875.02

Description

Accessory case for probes and small parts for all Rohde and Schwarz oscilloscopes

R&S®ZZA-RTC1K

Order number 1333.0967.02

Description

19" rackmount adapter for R&S®RTC1000 with 4HU

Passive probes
Product
Description

Order number 1803.1001.02

Description

Passive probe, 300 MHz, 10:1

Order number 1333.2401.02

Description

Passive probe, 500 MHz, 10:1

Order number 1333.1370.02

Description

Passive probe, 38 MHz, 1:1

High voltage probes
Product
Description

Order number 1333.0873.02

Description

250 MHz passive high voltage probe

Order number 1409.7720.02

Description

400 MHz passive high voltage probe

Order number 1409.7737.02

Description

400 MHz passive high voltage probe

Current probes
Product
Description

Order number 1333.0850.02

Description

AC/DC 20 kHz current probe

Order number 1333.0844.02

Description

100 kHz current probe

Order number 1409.7750K02

Description

10 MHZ current probe

Order number 1409.7766K02

Description

100 MHZ current probe

Order number 1409.7772K02

Description

120 MHz current probe

Order number 1801.4932.02

Description

120 MHz current probe

Logic probes
Product
Description
R&S®RT-ZL03

Order number 1333.0715.02

Description

300 MHz logic probe, 8 channels

Probe accessories
Product
Description

Order number 1409.7789.02

Description

Power supply for probes

Power supply for R&S®RT-ZC10/20/30 probes, +/-12V DC, +/-2.5A

Application bundles
Product
Description
R&S®RTC-PK1

Order number 1335.7330.03

Description

Application bundle (R&S®RTC-K1, -K2, -K3 and -B6)

Application bundle contains I²C/SPI (R&S®RTC-K1), UART/RS-232(RS-422/RS-485 (RTC-K2) and CAN/LIN (RTC-K3), Generator (R&S®RTC-B6) for R&S®RTC1002 models

R&S®RTC1000 - Media center

R&S®RTC1000 - X-in1 oscilloscope
R&S®RTC1000 - X-in1 oscilloscope

R&S®RTC1000 Series oscilloscopes provides high sensitivity and multifunctionality to a great price.

R&S®RTC1000 - Serial protocol triggering and decoding
R&S®RTC1000 - Serial protocol triggering and decoding

Protocols such as I²C, SPI and CAN/LIN frequently transfer control messages between integrated circuits.

R&S®RTC1000 - Frequency analysis
R&S®RTC1000 - Frequency analysis

Difficult-to-find faults often result from the interaction between time and frequency signals.

Also interesting for you

10 years of Rohde & Schwarz oscilloscope innovation

More information

Oscilloscope and probe fundamentals

Learn about basic oscilloscope operation, probes as well as various oscilloscope related applications that help you optimize your measurement results.

More information

Oscilloscopes promotion

Choose the right R&S promotion for your individual needs and save your budget

More information

Oscilloscope webinar center for digital design and power electronics applications

More information

Up to 50% more savings on Rohde & Schwarz Oscilloscopes for educational customers

More information

Solution for

Automotive network testing

Rohde & Schwarz oscilloscopes offer solutions for debugging all protocol networks commonly used in the automotive industry.

More information

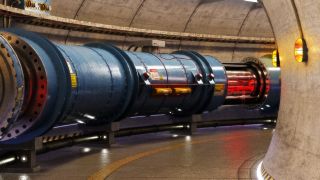

Particle accelerator research

Rohde & Schwarz provides a range of solutions for development, optimization and operation of particle accelerators

More information

Request information

Do you have questions or need additional information? Simply fill out this form and we will get right back to you.

Marketing permission

Your request has been sent successfully. We will contact you shortly.
An error is occurred, please try it again later.
General and legal information

Manufacturer's recommended retail price (MSRP). The price shown does not include VAT. Prices and offers are only intended for entrepreneurs and not for private end consumers.

You may use the electronic signature via DocuSign to submit your information to enroll with the Rohde & Schwarz Customer Delegated Administration program. DocuSign processes the information provided according to their . The minimum system requirements for using the DocuSign system may change over time. The current system requirements are found

Terms & Conditions of the Prize Draw 10 years Rohde & Schwarz oscilloscopes

1. The prize draw “10 years Rohde & Schwarz oscilloscopes” (herein referred to as “Draw”) is organized by Rohde & Schwarz GmbH & Co. KG, Mühldorfstraße 15, 81671 Munich, Germany, Tel. +49 89 41 29 0 (herein referred to as “R&S).

2. All participators can register to the draw during January 01, 2020 to December 31, 2020 with their name, company name and business e-mail.

3. Participation is free of charge and not dependent on the purchase of goods or services.

4. The draw is only open to legal entities and only the legal entities are able to win the prizes. An individual person is not allowed to participate on its own name and its own account but as a representative of a legal entity filing the participation form in the name of and on behalf of the legal entity.

5. The prizes to win are 1 of 10 R&S®RTB2000 within the time frame January 1, 2020 to December 31, 2020:

Prize: 1x R&S®RTB2000 Digital Oscilloscope

6. The draw takes place at Rohde & Schwarz headquarters, Muehldorstrasse 15, 81671 Munich. The winner of the prizes will be informed by e-mail within 5 (5) working days.

7. The authorized representative of the legal entity shall inform Rohde & Schwarz about the acceptance of the price. In case of the denial of the acceptance, or no answer within two (2) weeks, a new winner will be drawn. If no winner can be determined within four (4) weeks, the draw ends and the prize forfeit.

8. R&S’ employees and members of their families and also person being familiar with the process of the draw and members of their families are excluded from filling the participation form.

9. No cash equivalent or exchange of prizes is allowed. Prizes are non-transferable. All taxes, levies, duties, fees and other charges levied in the participant´s country shall be borne by the participant.

10. Personal data will be processed only for the purpose of this prize draw and deleted four (4) weeks after the draw, if not agreed otherwise.

11. Any Participant who does not comply with these Terms & Conditions may be disqualified by R&S from this Competition. In such cases, prizes can also be withdrawn retrospectively. In case a prize is withdrawn retrospectively due to the non-compliance with these Terms & Conditions, it shall be returned by the respective participant at his cost to R&S’ address mentioned under Nr.1 and a new winner will be drawn.

12. The participants cannot claim the prizes of this draw and no legal recourse is permitted in this respect.

13. The draw and any contractual relationship arising therefrom between R&S and the respective participant shall be governed by and construed in accordance with the laws of Germany, without any recourse to the conflict of laws. The courts of Munich, Germany, shall have exclusive jurisdiction in case of any disputes arising directly or indirectly from the participation in this Competition.

* “fast delivery” inside 7 working days applies to the Rohde & Schwarz in-house procedures from order processing through to available ex-factory to ship.
