R&S®SMA100B RF and microwave signal generator, Front view R&S®SMA100B RF and microwave signal generator, Front view R&S®SMA100B RF and microwave signal generator, Front High R&S®SMA100B RF and microwave signal generator, Back view R&S®SMA100B RF and microwave signal generator, Side view R&S®SMA100B RF and microwave signal generator, Hero view R&S®SMA100B RF and microwave signal generator, Front High R&S®SMA100B RF and microwave signal generator, Back view R&S®SMA100B RF and microwave signal generator, Application Image R&S®SMA100B RF and microwave signal generator, Application Image

Key facts

  • Frequency range: 8 kHz to 3, 6, 12.75, 20, 31.8, 40, 50 and 67 GHz (overrange up to 72 GHz)
  • SSB phase noise of  –132 dBc (typ.) at 10 GHz and 10 kHz offset
  • Wideband noise of –162 dBc (meas.) at 10 GHz and 30 MHz offset
  • Maximum output power exceeds 30 dBm across wide frequency ranges
  • Exceptionally low harmonics
  • 3 year warranty extension

Performance leadership without compromise

The R&S®SMA100B RF and microwave signal generator delivers maximum performance without compromise. It provides the purest output signals while maintaining the highest output power levels with the lowest harmonics, far outpacing the competition. As the world's leading signal generator, it can handle the most demanding module and systemT&M tasks in the RF semiconductor, wireless communications, aerospace and defense industries.

Features & benefits

First-class devices thanks to first-class signals

The R&S®SMA100B delivers uncompromising maximum performance.

  • It provides purest output signals while maintaining the highest output power level combined with lowest harmonics.
  • Frequency range from 8 kHz up to 67 GHz (overrange 72 GHz)
  • Lowest SSB phase noise of –132 dBc (typ.) at 10 GHz and 10 kHz offset
  • Virtually no wideband noise of –162 dBc (meas.) at 10 GHz and 30 MHz offset
  • Maximum output power exceeds 30 dBm across wide frequency ranges
  • Exceptionally low harmonics
  • State-of-the-art GUI with touch display

SSB phase noise for different frequencies
Open Lightbox

SSB phase noise for different frequencies

Measured SSB phase noise performance of R&S®SMA100B with R&S®SMAB-B711(N) option

Very high output power without compromise

Large dynamic range, excellent level accuracy and level repeatability

Very high output power is often required in the microwave frequency range because the higher the frequency, the more attenuation. The R&S®SMA100B offers different output power stages to compensate for such losses. As a result, no downstream external amplifier is required.

  • Over 30 dBm at 18 GHz and 28 dBm at 20 GHz with the 20 GHz instrument
  • Over 19 dBm between 40 GHz and 65 GHz with the 67 GHz instrument

Maximum measured output power
Open Lightbox

Maximum measured output power

Measured maximum available output power for the 40 GHz and the 67 GHz instrument (standard, high and ultra-high output power options)

User friendly in every detail

Easy integration into test systems and innovative operating features

  • Flexible 2 HU or 3 HU housing
  • 3 HU with large 7" display and multiple front panel connectors
  • Ergonomic GUI with touch display
  • Frequently used menu items can be added to the user menu for quick and direct access to all necessary settings in a single menu
  • The R&S®SMA100B also has a SCPI macro recorder with a code generator to automatically record manual settings and create an executable MATLAB® script

Innovative operating features
Open Lightbox

Innovative operating features

The built-in SCPI macro recorder and code generator supports fast, easy generation of SCPI program sequences

R&S®LegacyPro: refresh your technology

Trade in your legacy signal generators

R&S®LegacyPro enables the R&S®SMA100B to reliably emulate a wide range of legacy generators from vendors such as Keysight, Agilent, HP, Anritsu and Rohde & Schwarz. As a result, the R&S®SMA100B can be deployed in legacy systems without major software changes, effectively increasing uptime, lowering cost of ownership and lengthening the test system’s useful life.

R&S®LegacyPro
Open Lightbox

R&S®LegacyPro

Enjoy plug and play replacement of your legacy signal generators with R&S®LegacyPro and the R&S®SMA100B


High-end ADC and DAC component tests

Measure the true performance of your device

Analog input bandwidth and required clock frequency increase with each new ADC generation. The increase in the effective number of bits also results in a larger signal-to-noise ratio. This means that extremely clean, high-frequency signals that exceed the DUT performance are required to test ADCs and DACs. The outstanding R&S®SMA100B performance is perfect not only for optimizing DUTs, it can even make improvements technically feasible in the first place.

The R&S®SMA100B in an ADC/DAC application
Open Lightbox

The R&S®SMA100B in an ADC/DAC application

Compact ADC test setup for clock signals up to 6 GHz using a single R&S®SMA100B with an integrated second source

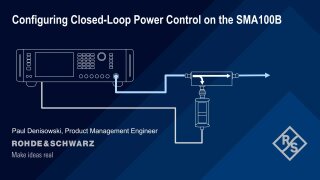

 R&S®NRP power sensor connectivity

An R&S®NRP power sensor  can be connected to the R&S®SMA100B

A DUT is rarely connected directly to the generator. Cables and other components are often between the generator and the DUT. This shifts the reference plane from the generator's RF output to the DUT. An R&S®NRP power sensor can be connected to the R&S®SMB100B to allow extremely precise calibration (tenth of a dB) on this new reference plane.

R&S®NRP power sensor connectivity
Open Lightbox

R&S®NRP power sensor connectivity

R&S®SMA100B with connected Rohde & Schwarz power sensor





UCOR (user corretion)

Compensation of an external frequency response

DUTs are often connected to the signal generator via long cables or other frequency dependent components, making it very important to compensate for the frequency response. The R&S®SMA100B provides a user correction (UCOR) function for this purpose. Together with an R&S®NRP power sensor, the UCOR values are automatically determined by the push of a button. With UCOR, a frequency response compensated RF signal is available at the new reference plane.

Setup and UCOR function
Open Lightbox

Setup and UCOR function

Relative output power display when using cables and other components (with their own frequency response) between the R&S®SMA100B and a DUT.

Variable reference frequency inputs/outputs

The R&S®SMA100B provides various ways to output (or input) reference signals. The 1 MHz to 100 MHz variable external reference frequency input (R&S®SMAB-K704 option) allows the R&S®SMA100B to be easily integrated into existing test environments. The received reference frequency can also be assigned to a completely different reference output.

Variable reference frequency inputs/outputs
Open Lightbox

Variable reference frequency inputs/outputs

R&S®SMA100B rear panel reference frequency inputs and outputs

Uninterrupted level sweep with high dynamic range

When measuring the gain transfer function or the output saturation point of an amplifier with integrated automatic level control (ALC), the signal generator must provide a wide uninterrupted level sweep range. The R&S®SMA100B equipped with the R&S®SMAB-K724  option essentially provides the following:

  • Blank-free (uninterrupted) level sweep with exceptionally high dynamic range
  • High level linearity across the entire level sweep range

Open Lightbox

Uninterrupted high dynamic range level sweep with with the R&S®SMA100B

Available options

Frequency options
Product
Description
R&S®SMAB-B103

Order number 1420.8488.02

Description

8 kHz to 3 GHz

R&S®SMAB-B106

Order number 1420.8588.02

Description

8 kHz to 6 GHz

R&S®SMAB-B112

Order number 1420.8688.02

Description

8 kHz to 12.75 GHz

R&S®SMAB-B120

Order number 1420.8788.02

Description

8 kHz to 20 GHz

R&S®SMAB-B131

Order number 1420.8888.02

Description

8 kHz to 31.8 GHz

R&S®SMAB-B140

Order number 1420.8988.02

Description

8 kHz to 40 GHz

R&S®SMAB-B140N

Order number 1420.8965.02

Description

8 kHz to 40 GHz, limited minimum pulse width

R&S®SMAB-B150

Order number 1420.9049.02

Description

8 kHz to 50 GHz

R&S®SMAB-B150N

Order number 1420.9026.02

Description

8 kHz to 50 GHz, limited minimum pulse width

R&S®SMAB-B167

Order number 1420.9149.02

Description

8 kHz to 67 GHz

R&S®SMAB-B167N

Order number 1420.9126.02

Description

8 kHz to 67 GHz, limited minimum pulse width

R&S®SMAB-B29

Order number 1420.8088.02

Description

Differential clock synthesizer, 3 GHz

R&S®SMAB-K722

Order number 1420.9810.02

Description

Clock synthesizer frequency extension to 6 GHz

Phase noise performance options
Product
Description
R&S®SMAB-B709

Order number 1420.9849.02

Description

Low Phase Noise for R&S®SMAB-B106/-B112/-B120/-B131/-B140(N)/-B150(N)/-B167(N)

R&S®SMAB-B710

Order number 1420.8007.02

Description

Improved Close-in Phase Noise for R&S®SMAB-B106/-B112/-B120/-B131/-B140/-B150/-B167

R&S®SMAB-B710N

Order number 1420.8107.02

Description

Improved Close-in Phase Noise for R&S®SMAB-B103

R&S®SMAB-B711

Order number 1420.8020.02

Description

Ultra Low Phase Noise for R&S®SMAB-B106/-B112/-B120/-B131/-B140/-B150/-B167

R&S®SMAB-B711N

Order number 1420.8120.02

Description

Ultra Low Phase Noise for R&S®SMAB-B103

Reference oscillator options
Product
Description
R&S®SMAB-B1H

Order number 1420.8188.02

Description

High Performance OCXO Reference Oscillator

R&S®SMAB-K703

Order number 1420.9761.02

Description

100 MHz, 1 GHz Reference Input and Output

R&S®SMAB-K704

Order number 1420.9778.02

Description

Flexible Reference Input 1 MHz to 100 MHz

Output power options
Product
Description
R&S®SMAB-K31

Order number 1420.7100.02

Description

High output power, 3 GHz/6 GHz

R&S®SMAB-B32

Order number 1420.7200.02

Description

Ultra high output power, 3 GHz/6 GHz

R&S®SMAB-K33

Order number 1420.7300.02

Description

High output power, 12.75 GHz/20 GHz

R&S®SMAB-B34

Order number 1420.7400.02

Description

Ultra high output power, 12.75 GHz/20 GHz

R&S®SMAB-B35

Order number 1420.7500.02

Description

High output power 31.8 GHz/40 GHz

R&S®SMAB-K36

Order number 1420.9178.02

Description

Ultra high output power 31.8 GHz/40 GHz

R&S®SMAB-B36S

Order number 1420.9190.02

Description

Super ultra high output power 31.8 GHz/40 GHz

R&S®SMAB-B37

Order number 1420.7700.02

Description

High output power 50 GHz

R&S®SMAB-K38

Order number 1420.9255.02

Description

Ultra high output power 50 GHz

R&S®SMAB-B39

Order number 1420.7900.02

Description

High output power 67 GHz

R&S®SMAB-K40

Order number 1420.9278.02

Description

Ultra high output power 67 GHz

Analog modulation options
Product
Description
R&S®SMAB-K22

Order number 1420.9710.02

Description

High Performance Pulse Modulator

R&S®SMAB-K23

Order number 1420.9726.02

Description

Pulse Generator

R&S®SMAB-K24

Order number 1420.9732.02

Description

Multifunction Generator

R&S®SMAB-K25

Order number 1420.9855.02

Description

VOR/ILS

R&S®SMAB-K27

Order number 1420.9749.02

Description

Pulse Train

R&S®SMAB-K720

Order number 1420.9790.02

Description

AM/FM/φM

R&S®SMAB-K721

Order number 1420.9784.02

Description

Scan AM

R&S®SMAB-K724

Order number 1420.9832.02

Description

High dynamic uninterrupted level sweep

R&S®SMAB-B28

Order number 1420.6579.02

Description

Ramp sweep

Other options
Product
Description
R&S®SMAB-B80

Order number 1420.6504.02

Description

Rear panel connectors (3 GHz/6 GHz)

R&S®SMAB-B81

Order number 1420.6510.02

Description

Rear panel connectors (12.75 GHz/20 GHz/31.8 GHz/ 40 GHz)

R&S®SMAB-B82

Order number 1420.6527.02

Description

Rear panel connectors (50 GHz/67 GHz) PC 1.85 mm

Extras
Product
Description
R&S®ZZA-KNP21

Order number 1177.8803.00

Description

19" rack adapter for 2 HU model

R&S®ZZA-KNP31

Order number 1177.8810.00

Description

19" rack adapter for 3 HU model

R&S®TS-USB1

Order number 6124.2531.00

Description

USB serial adapter for RS-232 remote control

R&S®SMAB-Z10

Order number 1420.6662.02

Description

Spare SD card

R&S®SMAB-B85

Order number 1420.6556.02

Description

Removable mass storage

R&S®SMAB-B86

Order number 1420.6562.02

Description

Remote control GPIB and USB

R&S®SMAB-K28

Order number 1420.9755.02

Description

Power analysis

Documentation
Product
Description
R&S®DCV-2

Order number 0240.2193.18

Description

Documentation of Calibration Values

R&S®ACASMA100B

Order number 3598.3307.03

Description

R&S®DCV-2 0240.2193.18 R&S®SMA100B accredited calibration; up to 6 GHz

R&S®ACASMA100B

Order number 3598.3236.03

Description

R&S®SMA100B accredited calibration; 12.75 GHz to 40 GHz

R&S®ACASMA100B

Order number 3598.3207.03

Description

R&S®SMA100B accredited calibration; 50 GHz to 67 GHz

Base unit options
Product
Description
R&S®SMAB-B92

Order number 1420.8288.04

Description

Platform height option: 2 HU with 5" touch display

R&S®SMAB-B93

Order number 1420.8388.04

Description

Platform height option: 3 HU with 7" touch display

Base unit options
Product
Description
R&S®SMAB-K554

Order number 1420.9884.02

Description

Multiplier Control

Related videos

Angle of Arrival Simulation for Multi-Channel Receivers

This video shows how to define a Direction Finding scenario in the R&S®Pulse Sequencer software and how to replay the scenario on a 4 channel R&S®SMW200A setup that has been aligned in terms of amplitude, delay and phase.

09-Dec-2020

R&S®SMW200A - RF Ports Alignment - Getting Started

This video shows how to set up R&S®SMW200A vector signal generators and use the RF Ports Alignment option SMW-K545 together with the RFPAL PC software to generate multiple signals that are aligned in amplitude, delay and phase at the input of a multi-port DUT.

09-Dec-2020

#ThinkSix – Sub THz communications – a step towards 6G

Rohde & Schwarz has carried out demonstrations in the sub-terahertz frequency band using the R&S FSW high-end signal and spectrum analyzer that supports an unparalleled 8.3 GHz internal analysis bandwidth.

20-May-2020

R&S®SMA100B – High dynamic uninterrupted level sweep

This video shows how to profit from the high dynamic uninterrupted level sweep feature of the Rohde & Schwarz ® SMA100B for measuring gain transfer curves of amplifiers.

16-Sep-2019

R&S®SMA100B - Signals with lowest phase noise

Radar engineering, data converter testing, base station blocking tests - all of them require signals with lowest phase noise at the relevant offset frequencies.

16-Sep-2019

R&S®SMA100B – Measuring harmonic distortion of high power amplifiers

This video shows how the R&S®SMA100B can provide ultra high output power signals with lowest harmonics at the same time.

16-Sep-2019

R&S®SMA100B - Product Video

The product image video shows the R&S®SMA100B RF and microwave signal generator with its outstanding performance without compromise.

23-Jul-2019

The signal that makes the difference

This video shows the SMA100B-Online-presentation.

12-Feb-2019

Request information

Do you have questions or need additional information? Simply fill out this form and we will get right back to you.

I want to receive information from Rohde & Schwarz via

Marketing permission

What does this mean in detail?

I agree that Rohde & Schwarz GmbH & Co. KG and the Rohde & Schwarz entity or subsidiary company mentioned in the imprint of this website, may contact me via the chosen channel (email or postal mail) for marketing and advertising purposes (e.g. information on special offers and discount promotions) related to, but not limited to, products and solutions in the fields of test and measurement, secure communications, monitoring and network testing, broadcast and media, and cybersecurity.

Your rights

This declaration of consent may be withdrawn at any time by sending an email with the subject "Unsubscribe" to news@rohde-schwarz.com. Additionally, a link to unsubscribe from future email advertisements is contained in each email sent. Further details on the use of personal data and the withdrawal procedure are set out in the Statement of Privacy.

Your request has been sent successfully. We will contact you shortly.
An error is occurred, please try it again later.
General and legal information

Manufacturer's recommended retail price (MSRP). The price shown does not include VAT. Prices and offers are only intended for entrepreneurs and not for private end consumers.

Terms & Conditions of the Prize Draw 10 years Rohde & Schwarz oscilloscopes

1. The prize draw “10 years Rohde & Schwarz oscilloscopes” (herein referred to as “Draw”) is organized by Rohde & Schwarz GmbH & Co. KG, Mühldorfstraße 15, 81671 Munich, Germany, Tel. +49 89 41 29 0 (herein referred to as “R&S).

2. All participators can register to the draw during January 01, 2020 to December 31, 2020 with their name, company name and business e-mail.

3. Participation is free of charge and not dependent on the purchase of goods or services.

4. The draw is only open to legal entities and only the legal entities are able to win the prizes. An individual person is not allowed to participate on its own name and its own account but as a representative of a legal entity filing the participation form in the name of and on behalf of the legal entity.

5. The prizes to win are 1 of 10 R&S®RTB2000 within the time frame January 1, 2020 to December 31, 2020:

Prize: 1x R&S®RTB2000 Digital Oscilloscope

6. The draw takes place at Rohde & Schwarz headquarters, Muehldorstrasse 15, 81671 Munich. The winner of the prizes will be informed by e-mail within 5 (5) working days.

7. The authorized representative of the legal entity shall inform Rohde & Schwarz about the acceptance of the price. In case of the denial of the acceptance, or no answer within two (2) weeks, a new winner will be drawn. If no winner can be determined within four (4) weeks, the draw ends and the prize forfeit.

8. R&S’ employees and members of their families and also person being familiar with the process of the draw and members of their families are excluded from filling the participation form.

9. No cash equivalent or exchange of prizes is allowed. Prizes are non-transferable. All taxes, levies, duties, fees and other charges levied in the participant´s country shall be borne by the participant.

10. Personal data will be processed only for the purpose of this prize draw and deleted four (4) weeks after the draw, if not agreed otherwise.

11. Any Participant who does not comply with these Terms & Conditions may be disqualified by R&S from this Competition. In such cases, prizes can also be withdrawn retrospectively. In case a prize is withdrawn retrospectively due to the non-compliance with these Terms & Conditions, it shall be returned by the respective participant at his cost to R&S’ address mentioned under Nr.1 and a new winner will be drawn.

12. The participants cannot claim the prizes of this draw and no legal recourse is permitted in this respect.

13. The draw and any contractual relationship arising therefrom between R&S and the respective participant shall be governed by and construed in accordance with the laws of Germany, without any recourse to the conflict of laws. The courts of Munich, Germany, shall have exclusive jurisdiction in case of any disputes arising directly or indirectly from the participation in this Competition.
