R&S®FSH handheld spectrum analyzer, front view R&S®FSH handheld spectrum analyzer, side view R&S®FSH handheld spectrum analyzer, back view R&S®FSH handheld spectrum analyzer, side view R&S®FSH handheld spectrum analyzer, side view R&S®FSH handheld spectrum analyzer, application image R&S®FSH handheld spectrum analyzer, side view R&S®FSH handheld spectrum analyzer, application image R&S®FSH handheld spectrum analyzer, application image

Key facts

  • 9 kHz up to 20 GHz
  • Excellent sensitivity (with preamplifier) of < –161 dBm (1 Hz)
  • All-in-one spectrum analyzer, network analyzer and CAT
  • Internal tracking generator, VSWR bridge, bias tee
  • Rugged, splash-proof housing for use in the field
  • 3-year warranty extension

The all-in-one handheld analyzer is an ideal for routine measurements in the field

The R&S®FSH handheld spectrum analyzer is also a network analyzer, cable and antenna analyzer, interference hunting analyzer and power meter. The feature-packed analyzer makes field measurements simple and efficient. The rugged design and built-in handle makes it ideal for any outdoor tasks.

Features & benefits

Multi-purpose analyzer

The R&S®FSH handheld spectrum analyzer has all the essential functions for indoor and outdoor applications:

  • Transmitter station Installation and maintenance
  • Analysis of transmit signals (LTE, NB-IoT, TD-SCDMA, WCDMA, CDMA, GSM, etc.)
  • Channel power and spurious emission measurements
  • Cable and antenna measurements
  • Scalar or vector network analysis
  • Interference analysis
  • Field strength measurements
  • EMI diagnostics in the lab or in service


An indispensable tool in the field
Open Lightbox

An indispensable tool in the field

Perfect for cable measurements and over-the-air measurements

Perfect companion

The R&S®FSH handheld spectrum analyzer comes in several models. This all-in-one analyzer has a built-in tracking generator, VSWR bridge and bias tee. You no longer need multiple analyzers for field measurements.

Ready to go
Open Lightbox

Ready to go

You only need one analyzer

Uncompromising RF performance

Despite its small form factor, the R&S®FSH handheld spectrum analyzer has excellent sensitivity and third order intercept characteristics. The analyzer has a good dynamic range for both low-power and high-power signals.

  • DANL (RBW = 1 Hz, normalized) with preamplifier, 8 GHz to 13.6 GHz: –162 dBm typ
  • TOI (IP3), 300 MHz to 3.6 GHz: +15 dBm typ

An analyzer you can trust
Open Lightbox

An analyzer you can trust

You can always rely on R&S®FSH handheld spectrum analyzers for your measurements

Simplify preparation

Do you have limited time on site? R&S®InstrumentView software can predefine measurement parameters and steps before you go to the site. This saves time and reduces human error in the field.

Increase productivity with R&S®InstrumentView
Open Lightbox

Increase productivity with R&S®InstrumentView

R&S®InstrumentView software can predefine test setups with the wizard function or the EMF configuration tab.

Available models

Available models
Models
Frequency range
Phase noise
DANL @ 1 GHz
Max. analysis bandwidth
Instrument type
Starting at

R&S®FSH4

Order number 1309.6000.04

Frequency range
9 kHz - 3.6 GHz
Phase noise
–127 dBc (1 Hz) (f = 500 MHz, 1 MHz offset)
DANL @ 1 GHz
–163 dBm
Max. analysis bandwidth
-
Instrument type
Signal and spectrum analyzer
Starting at
Price On Request

R&S®FSH4

Order number 1309.6000.14

Frequency range
9 kHz - 3.6 GHz
Phase noise
–127 dBc (1 Hz) (f = 500 MHz, 1 MHz offset)
DANL @ 1 GHz
–163 dBm
Max. analysis bandwidth
-
Instrument type
Signal and spectrum analyzer
Starting at
Price On Request

R&S®FSH4

Order number 1309.6000.24

Frequency range
100 kHz - 3.6 GHz
Phase noise
–127 dBc (1 Hz) (f = 500 MHz, 1 MHz offset)
DANL @ 1 GHz
–163 dBm
Max. analysis bandwidth
-
Instrument type
Combination analyzer
Starting at
Price On Request

R&S®FSH8

Order number 1309.6000.08

Frequency range
9 kHz - 8 GHz
Phase noise
–127 dBc (1 Hz) (f = 500 MHz, 1 MHz offset)
DANL @ 1 GHz
–163 dBm
Max. analysis bandwidth
-
Instrument type
Signal and spectrum analyzer
Starting at
Price On Request

R&S®FSH8

Order number 1309.6000.18

Frequency range
9 kHz - 8 GHz
Phase noise
–127 dBc (1 Hz) (f = 500 MHz, 1 MHz offset)
DANL @ 1 GHz
–163 dBm
Max. analysis bandwidth
-
Instrument type
Signal and spectrum analyzer
Starting at
Price On Request

R&S®FSH8

Order number 1309.6000.28

Frequency range
100 kHz - 8 GHz
Phase noise
–127 dBc (1 Hz) (f = 500 MHz, 1 MHz offset)
DANL @ 1 GHz
–163 dBm
Max. analysis bandwidth
-
Instrument type
Combination analyzer
Starting at
Price On Request

R&S®FSH13

Order number 1314.2000.13

Frequency range
9 kHz - 13.6 GHz
Phase noise
–127 dBc (1 Hz) (f = 500 MHz, 1 MHz offset)
DANL @ 1 GHz
–163 dBm
Max. analysis bandwidth
-
Instrument type
Signal and spectrum analyzer
Starting at
Price On Request

R&S®FSH13

Order number 1314.2000.23

Frequency range
9 kHz - 13.6 GHz
Phase noise
–127 dBc (1 Hz) (f = 500 MHz, 1 MHz offset)
DANL @ 1 GHz
–163 dBm
Max. analysis bandwidth
-
Instrument type
Combination analyzer
Starting at
Price On Request

R&S®FSH20

Order number 1314.2000.20

Frequency range
9 kHz - 20 GHz
Phase noise
–127 dBc (1 Hz) (f = 500 MHz, 1 MHz offset)
DANL @ 1 GHz
–163 dBm
Max. analysis bandwidth
-
Instrument type
Signal and spectrum analyzer
Starting at
Price On Request

R&S®FSH20

Order number 1314.2000.30

Frequency range
9 kHz - 20 GHz
Phase noise
–127 dBc (1 Hz) (f = 500 MHz, 1 MHz offset)
DANL @ 1 GHz
–163 dBm
Max. analysis bandwidth
-
Instrument type
Combination analyzer
Starting at
Price On Request

Available options

Hardware options
Product
Description
R&S®FSH-B106

Order number 1304.5958.02

Description

Li-Ion Battery Pack 6.75 Ah

Installed at factory; upgrade of the battery from 4.5 Ah to 6.75 Ah

Cellular systems
Product
Description
R&S®FSH-K10

Order number 1304.5864.02

Description

GSM, EDGE measurement application

R&S®FSH-K44

Order number 1304.5641.02

Description

3GPP WCDMA BTS/NodeB Application for Pilot Channel and EVM Measurements

R&S®FSH-K44E

Order number 1304.5758.02

Description

3GPP WCDMA BTS/NodeB Application for Code Domain Power Measurements

(requires R&S®FSH-K44)

R&S®FSH-K46

Order number 1304.5729.02

Description

CDMA2000® BTS Application for Pilot Channel and EVM Measurements

R&S®FSH-K46E

Order number 1304.5764.02

Description

CDMA2000® BTS Application for Code Domain Power Measurements

(requires R&S®FSH-K46)

R&S®FSH-K47

Order number 1304.5787.02

Description

1xEV-DO BTS Application for Pilot Channel and EVM Measurements

R&S®FSH-K47E

Order number 1304.5806.02

Description

1xEV-DO BTS PN-Scanner and Time-Domain-Power measurement application

R&S®FSH-K47 required (software license)

R&S®FSH-K48

Order number 1304.5841.02

Description

TD-SCDMA BTS Power and EVM Measurements

R&S®FSH-K48E

Order number 1304.5858.02

Description

TD-SCDMA/HSDPA BTS Power and EVM Measurements

(R&S®FSH-K48 required)

R&S®FSH-K50

Order number 1304.5735.02

Description

LTE FDD Downlink Application for Pilot Channel and EVM Measurements

R&S®FSH-K50E

Order number 1304.5793.02

Description

LTE FDD Downlink Application for Enhanced Channel and Modulation Measurements

(requires R&S®FSH-K50)

R&S®FSH-K51

Order number 1304.5812.02

Description

LTE TDD Downlink Application for Pilot Channel and EVM Measurements

R&S®FSH-K51E

Order number 1304.5829.02

Description

LTE TDD Downlink Application for Enhanced Channel and Modulation Measurements

(requires R&S®FSH-K51)

R&S®FSH-K56

Order number 1318.6100.02

Description

NB-IoT Measurement Application

Only for R&S®FSH analyzers with serial numbers ≥ 105000.

General purpose
Product
Description
R&S®FSH-K40

Order number 1304.5606.02

Description

Remote Control via LAN or USB

R&S®FSH-K43

Order number 1304.5635.02

Description

Receiver mode and channel scan measurement

R&S®FSH-K105

Order number 1318.6200.02

Description

EMF measurement application

EMF measurement application (software license)

R&S®FSH-K20

Order number 1318.6600.02

Description

Segmented sweep.

The R&S®FSH-K20 option turns on the second display segment in spectrum mode, creating two handheld spectrum analyzers in one.

Radar
Product
Description
R&S®FSH-K29

Order number 1304.5993.02

Description

Pulse Measurements with Power Sensor (software license),

Interference analysis
Product
Description
R&S®FSH-K14

Order number 1304.5770.02

Description

Spectrogram measurement application

R&S®FSH-K15

Order number 1309.7488.02

Description

Interference analysis measurement application (software license)

R&S®FSH-K16

Order number 1309.7494.03

Description

Geotagging measurement application

R&S®FSH-K17

Order number 1304.5893.02

Description

Indoor Mapping Measurement Application (software license)

CAT/VNA measurements
Product
Description
R&S®FSH-K41

Order number 1304.5612.02

Description

Distance-to-Fault Measurement

(for models .24/.28/.23/.30 only, R&S®FSH-Z320 or R&S®FSH-Z321 and R&S®FSH-Z28 or R&S®FSH-Z29 recommended)

R&S®FSH-K42

Order number 1304.5629.02

Description

Vector Reflection and Transmission Measurements

(for models .24/.28 only, requires R&S®FSH-Z28 or R&S®FSH-Z29, models .23/.30 support one port reflection and transmission measurements as standard)

R&S®FSH-K45

Order number 1304.5658.02

Description

Vector Voltmeter

(for models .24/.28/.23/.30 only, requires R&S®FSH-Z28 or R&S®FSH-Z29)

Instrument security
Product
Description
R&S®FSH INSTRUMENT SECURITY

Order number 1173.9128.52

Description

PC software
Product
Description
R&S®Instrument view

Order number 1328.7315.00

Description

R&S®FSH handheld spectrum analyzer - videos

LTE Signal Measurements Using the R&S®FSH Handheld Spectrum Analyzer
LTE signal measurements using the R&S®FSH handheld spectrum analyzer

The video demonstrates the convenient user interface of the R&S®FSH handheld spectrum analyzer from Rohde & Schwarz to measure LTE signals.

Precise pulse measurements using the R&S®FSH/ZVH handheld spectrum analyzer
Precise pulse measurements using the R&S®FSH/ZVH handheld spectrum analyzer

The video demonstrates precise pulse measurements using the R&S®FSH handheld spectrum analyzer or R&S®ZVH cable and antenna analyzer together with an R&S®NRP-Z power sensor. This solution is ideal for maintenance and troubleshooting of radar systems especially in outdoor remote locations.

Solutions for

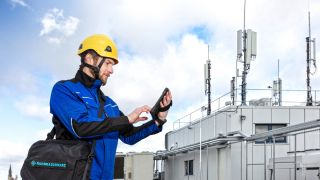

Installation and maintenance

Network operators are investing heavily in expanding network capacity and introducing new technologies. The number of newly deployed BTS installations is increasing.

More information

Interference hunting

Unwanted transmitters are pervasive in today’s mobile networks, degrading network capacity and reducing subscriber QoE.

More information

Aerospace & defense test and measurement

In the aerospace and defense industry, innovation and disruptive technologies are a key element of success.

More information

Antennas

Antennas are getting more and more attention in the system level design due to MIMO and active beamforming.

More information

Teaching-Software for Multi-User Student Labs
Teaching-Software for Multi-User Student Labs

The R&S®CDS campus dashboard software simplifies teaching of student groups in laboratories with multiple workbenches.

Request information

Do you have questions or need additional information? Simply fill out this form and we will get right back to you.

Marketing permission

Your request has been sent successfully. We will contact you shortly.
An error is occurred, please try it again later.
General and legal information

Manufacturer's recommended retail price (MSRP). The price shown does not include VAT. Prices and offers are only intended for entrepreneurs and not for private end consumers.

You may use the electronic signature via DocuSign to submit your information to enroll with the Rohde & Schwarz Customer Delegated Administration program. DocuSign processes the information provided according to their . The minimum system requirements for using the DocuSign system may change over time. The current system requirements are found

Terms & Conditions of the Prize Draw 10 years Rohde & Schwarz oscilloscopes

1. The prize draw “10 years Rohde & Schwarz oscilloscopes” (herein referred to as “Draw”) is organized by Rohde & Schwarz GmbH & Co. KG, Mühldorfstraße 15, 81671 Munich, Germany, Tel. +49 89 41 29 0 (herein referred to as “R&S).

2. All participators can register to the draw during January 01, 2020 to December 31, 2020 with their name, company name and business e-mail.

3. Participation is free of charge and not dependent on the purchase of goods or services.

4. The draw is only open to legal entities and only the legal entities are able to win the prizes. An individual person is not allowed to participate on its own name and its own account but as a representative of a legal entity filing the participation form in the name of and on behalf of the legal entity.

5. The prizes to win are 1 of 10 R&S®RTB2000 within the time frame January 1, 2020 to December 31, 2020:

Prize: 1x R&S®RTB2000 Digital Oscilloscope

6. The draw takes place at Rohde & Schwarz headquarters, Muehldorstrasse 15, 81671 Munich. The winner of the prizes will be informed by e-mail within 5 (5) working days.

7. The authorized representative of the legal entity shall inform Rohde & Schwarz about the acceptance of the price. In case of the denial of the acceptance, or no answer within two (2) weeks, a new winner will be drawn. If no winner can be determined within four (4) weeks, the draw ends and the prize forfeit.

8. R&S’ employees and members of their families and also person being familiar with the process of the draw and members of their families are excluded from filling the participation form.

9. No cash equivalent or exchange of prizes is allowed. Prizes are non-transferable. All taxes, levies, duties, fees and other charges levied in the participant´s country shall be borne by the participant.

10. Personal data will be processed only for the purpose of this prize draw and deleted four (4) weeks after the draw, if not agreed otherwise.

11. Any Participant who does not comply with these Terms & Conditions may be disqualified by R&S from this Competition. In such cases, prizes can also be withdrawn retrospectively. In case a prize is withdrawn retrospectively due to the non-compliance with these Terms & Conditions, it shall be returned by the respective participant at his cost to R&S’ address mentioned under Nr.1 and a new winner will be drawn.

12. The participants cannot claim the prizes of this draw and no legal recourse is permitted in this respect.

13. The draw and any contractual relationship arising therefrom between R&S and the respective participant shall be governed by and construed in accordance with the laws of Germany, without any recourse to the conflict of laws. The courts of Munich, Germany, shall have exclusive jurisdiction in case of any disputes arising directly or indirectly from the participation in this Competition.

* “fast delivery” inside 7 working days applies to the Rohde & Schwarz in-house procedures from order processing through to available ex-factory to ship.
