R&S®AdVISE Visual Inspection Software

Automated EUT monitoring based on camera signal evaluation

R&S®AdVISE Visual Inspection Software
Open Lightbox

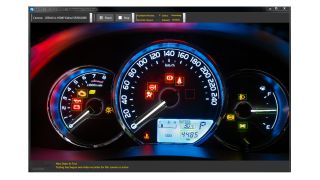

R&S®AdVISE Visual Inspection Software, Screenshot

Key facts

  • Wide range of powerful test methods
  • Continuous monitoring of up to 16 or 32 (optional) regions on the EUT in parallel
  • Saves time and eliminates human inattention
  • Compensation of vibrations with real time image tracking (optional)
  • Runs independently and under the control of system software

At a glance

R&S®AdVISE visual inspection software automates the process of visually monitoring an equipment under test (EUT) during a test sequence. This eliminates human inattention, ensures reproducible results and simplifies the test documentation. A typical application is EMS testing with R&S®EMC32 and R&S®ELEKTRA test software.

Features & benefits

System concept

Flexible and economical

  • Runs on any WindowsTM 7/10 controller that fulfills the minimum system requirements
  • Control software such as R&S®EMC32 or R&S®ELEKTRA can run on the same controller
  • Video grabbing via off-the-shelf portable frame grabber
  • Supports all cameras with DVI, HDMITM or HD-SDI interface
  • Supports the use of a multiviewer to analyze in parallel the video of up to four cameras

R&S®AdVISE setup
Open Lightbox

R&S®AdVISE setup

Typical R&S®AdVISE setup in a network system with the R&S®EMC32 or R&S®ELEKTRA EMC control software.

Optimal analysis efficiency

Regions of interests

Regions of interest (ROI) are the mechanism by which the user defines how to use the R&S®AdVISE system. A wide range of analytical methods covers a broad spectrum of visual inspection:
Illumination intensity

  • Optical Character Recognition (OCR) for text and numbers
    with option R&S®ADV-K1060
  • Indicator brightness and color
  • Analog indicator position
  • Presence or absence of symbols and icons
  • Change of numbers and fonts
  • Flashing indicator characteristics
  • Stop of motion
  • Audiomonitoring - Check of wanted or unwanted noise with option R&S®ADV1062

Checking a numerical readout with ROI OCR Number
Open Lightbox

Checking a numerical readout with ROI OCR Number

Image tracking

Option R&S®ADV-K1062

  • Automate visual inspection, even if running motors, shaky turntable or unstable camera suspension causes image vibrations.
  • Simplifies camera repositioning

Real time object tracking
Open Lightbox

Real time object tracking

Reliable analysis even with vibrations

Virtual camera

Option R&S®ADV-K1050

R&S®AdVISE can also analyze video recordings of completed tests with the R&S®ADV-K1050 virtual camera option.

  • Supports a wide range of video file containers and video formats
  • Same operation as during real-time operation

Virtual camera user interface
Open Lightbox

Virtual camera user interface

Using the virtual camera option to check the video record of an EUT during a test run

Video protocol and test report

Integrated protocol utilities

R&S®AdVISE creates a video protocol and an event list. What sets the system apart in usability is the indexing feature of the integrated video player. This feature allows the user to go to any event in the video just by clicking on the event information. The player also enables the user to collect a single frame as a JPEG image and to collect a clip of the video to be used for reports or archiving. The event list itself can be saved as a PDF test report.

Event controlled video protocol
Open Lightbox

Event controlled video protocol

Show any event in the video by cklicking on the event information

Remote control

R&S®AdVISE has a generic and an extended remote control interface

Generic remote control interface:

  • Open for any external control software
  • Passes summary Go/NoGo information to the control software
  • Control software can transmit test information to be inserted into the incoming and recorded video

  Extended remote control interface:
  • Supported in R&S EMC control software R&S®EMC32 and R&S®ELEKTRA
  • Same features as generic interface
  • Provides in addition the test results of the individual ROIs for graphical processing in R&S®EMC32

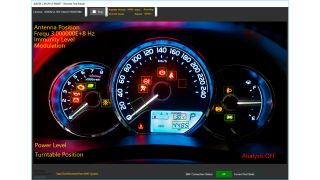

Measurement view overlaid EMS test conditions
Open Lightbox

Measurement view overlaid EMS test conditions

Available options

Base unit

Order number 1434.6518.02


Visual inspection software


Order number 1434.6660.02


License dongle

Software options

Order number 1434.6524.02


Extension to 32 ROI


Order number 1434.6530.02


Virtual camera


Order number 1434.6601.02


ROI Optical caracter recognition for text and numbers


Order number 1434.6618.02


ROI Audio


Order number 1434.6560.02


Image Tracking

Related videos

R&S®AdVISE Visual Inspection Software - The Tracking Feature


R&S®AdVISE Visual Inspection Software - Monitoring of Rotating Objects


R&S®AdVISE Visual Inspection Software - Monitoring of Audio


R&S®AdVISE Visual Inspection Software - Monitoring of Analog Indicators


R&S®AdVISE Visual Inspection Software - Automated susceptibility testing using R&S®AdVISE with R&S®ELEKTRA


R&S®AdVISE Visual Inspection Software - Monitoring of Dynamic Turn Indicators


R&S®AdVISE Visual Inspection Software - At a Glance
