Key facts
R&S®SZM family of frequency multipliers combines easy handling and precise output levels in the frequency range from 50 GHz to 170 GHz. They can be used in diverse applications, e.g. in the automotive sector with distance radars, in astronomy with sophisticated telescopes and in radar interferometry for analyzing the earth’s surface. The family of frequency multipliers consists of the models R&S®SZM75 (from 50 GHz to 75 GHz), R&S®SZM90 (from 60 GHz to 90 GHz), R&S®SZM110 (from 75 GHz to 110 GHz), R&S®SZM140 (from 90 GHz to 140 GHz) and R&S®SZM170 (from 110 GHz to 170 GHz). Depending on which base unit is selected, high output power, an attenuator or an isolator can be installed as options. To simplify handling, all three options are integrated in the same housing as the frequency multiplier. To enable control of the R&S®SZM via USB, the R&S®SMAB-K554 option must be installed on the R&S®SMA100B signal generator. This combination operates as a single unit allowing users to directly enter the desired frequency and the target level at the R&S®SZM output on the R&S®SMA100B GUI.
The frequency multiplier family R&S®SZM can be equipped with high power options or optional mechanically or electronically controlled attenuators. Depending on which base unit is selected, high output power, an attenuator or an isolator can be installed as options. To simplify handling, all three options are integrated in the same housing as the frequency multiplier. The optional Faraday isolator suppresses reflections and leads to a defined matching at the waveguide output. Finally, an optional test port adapter (TPA) can also be connected, which mechanically protects the R&S®SZM output.
Optional mechanically or electronically controlled attenuator
The R&S®SZM can be conveniently controlled via USB with the R&S®SMA100B microwave signal generator. To enable control of the R&S®SZM via USB, the R&S®SMAB-K554 option must be installed on the R&S®SMA100B signal generator. This combination operates as a single unit allowing users to directly enter the wanted frequency and with a mechanically or electronically controlled attenuator also the target level at the R&S®SZM output on the R&S®SMA100B.
R&S®SZM170 with mechanically controlled attenuator

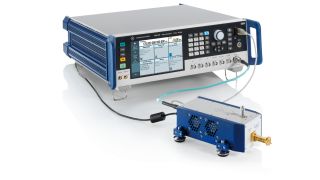

The R&S®SMA100B with the R&S®SZM170
Test setup containing the R&S®SMA100B microwave signal generator and the R&S®SZM170 frequency multiplier.
