R&S®QAR50 Quality automotive radome tester

Cost-effective automotive radome and bumper testing. Fast. Precise.

R&S®QAR50 Quality automotive radome tester
Open Lightbox
R&S®QAR50 Quality automotive radome tester
Open Lightbox
R&S®QAR50 Quality automotive radome tester
Open Lightbox
R&S®QAR50 Quality automotive radome tester
Open Lightbox
R&S®QAR50 radome tester R&S®QAR50 radome tester R&S®QAR50 radome tester R&S®QAR50 radome tester

Key facts

  • Precise transmission loss and reflection measurements plus frequency response in the automotive radar bands (72 GHz - 82 GHz)
  • Spatially resolved transmission phase and high resolution reflection image with a single measurement
  • Extremely short cycle time of less than 4 seconds ensures high production throughput
  • Traceable and accredited transmission loss and reflection measurement results using R&S®QAR50-Z44 verification set
  • The perfect instrument from material characterization and development to end-of-line production testing.

Ensuring automotive radome and bumper quality from design to end-of-line testing

The R&S®QAR50 is the ideal instrument for all stages of automotive radome and bumper testing: From material characterization during development to fast and accurate measurements in end-of-line (EOL) production testing. It is large enough to easily accommodate bulky bumpers and provides spatially resolved measurements to evaluate design emblem homogeneity. In order to reach into complex shaped bumpers, a robot mounted version is available. Its innovative hardware concept allows for the fastest measurement times on the market and the modular software concept can adapt to your particular requirements. The R&S®QAR50 delivers radome and bumper testing with speed and precision at a very attractive price.

Features & benefits

Robust and reliable results

Measurement clusters increase space for samples

The R&S®QAR50 uses almost 200 receive and transmit antennas to quickly characterize materials, bumpers and emblems. The microwave imaging technology uses electronic focusing for more flexible positioning of measurement antennas, freeing up space for the most important item: your material under test.

Electronic focusing increases the robustness of the setup. When just a single antenna is used for received and transmitted signals, the reflected energy must return exactly to its point of origin. The slightest deviation in angle massively effects the measurement value. The larger antenna array of the R&S®QAR50 allows for greater positioning tolerance while maintaining precise measurement results. Correct and reliable results are ensured within the positioning tolerances. Incorrect sample positioning can even be optically tracked in the resulting images.

Open Lightbox

It has clusters with hundreds of receive and transmit antennas to quickly characterize materials, bumpers and emblems with full electronic focus.

Fully electronic focusing

Bumper and radome characterization with without mechanical movement.

The R&S®QAR50 microwave imaging can completely characterize samples without any mechanical movement. The software not only features a spatially-resolved reflection and transmission phase imaging, but also frequency-resolved analysis of the equipment under test.

The resulting images allow for detailed homogeneity analysis of samples and the time-gated frequency response ensures optimized product and consistent quality of manufacturing processes.

Open Lightbox

The robust reflection measurements help track the correct positioning of your samples in production.

High accuracy and value

Keycode enabled measurement capabilities

The R&S®QAR50 software concept allows for flexible instrument configuration. The keycode enabled software options can configure the instrument for specific measurement requirements.
Starting with precise reflection and transmission loss measurements in the standard software, the instrument can be enhanced with the following measurement capabilities:

  • Transmission and reflection frequency response from 72 GHz to 82 GHz for constant quality monitoring of the production process
  • High resolution transmission phase imaging for homogeneity analysis of measured parts
  • High resolution reflection measurement for extensive analysis and error tracking in the process

Open Lightbox

The frequency resolved measurements help maintain constant production quality.

Material characterization

Evaluate the characteristics of newly developed materials, colors and coatings.

New colors and coatings need to be characterized for their radar transparency throughout the development process. In order to develop radar transparent primers and paints, the permittivity of each layer plays an important role. So far, vector network analyzers have been used in order to calculate permittivity and loss factor of each layer. The R&S®QAR50-K20 phase measurement together with the permittivity calculator allows for an easy and fast characterization of each layer without the challenges coming with of quasi-optical, or waveguide based setups.

Open Lightbox

The thickness of each layer is measured under a microscope and then used as input parameter for permittivity calculation.

Market leading precision

Traceable results for transmission and reflection measurements

The accuracy and repeatability of measurement equipment needs to be regularly verified. The DAkkS certified verification set (R&S®QAR50-Z44) can verify the R&S®QAR50 compliance with national/international standards. This ensures a smooth audit processes.
The R&S®QAR50-Z44 enables simple and quick verification of accuracy and repeatability. Both reflection and transmission loss measurement performance can be verified. The R&S®QAR50-Z44 can regularly monitor end-of-line (EOL) test equipment quality.

Open Lightbox

The DAkkS compliant R&S®QAR50-Z44 verification set with verification plates for transmission loss and reflection.

 Fastest measurement times

Cycle times optimized for high throughput during production.

The R&S®QAR50 can process large amounts of data in a short amount of time. Resulting images and frequency plots are available in just a few seconds. Depending on the parameter selection and the saved data, extremely fast cycle times are possible. The R&S®QAR50 the ideal test solution for high throughput production lines.

Open Lightbox

 Get results faster than with any other instrument (< 4 s)

Self calibration capabilities

Calibration without having to disassemble the setup

To calibrate standard test and measurement equipment, it usually has to be dismounted and set up as part of a special calibration procedure. However, the R&S®QAR50 can remain in place.
The built-in spherical reflectors allow it to be instantly calibrated. The measurement setup no longer needs to be removed or repositioned. This significantly reduces downtimes for scheduled maintenance or unscheduled repairs.

Open Lightbox

The calibration spheres are directly integrated into the R&S®QAR50 for quick in-line calibration.

Available models

Available models

R&S®QAR50 vertical polarization

Order number 1343.0099K02

Base unit with vertical polarization.

R&S®QAR50 horizontal polarization

Order number 1343.0099K03

Base unit with horizontal polarization.


base unit for robot assembly. Polarization agnostic.
Analysis and measurement
Frequency range Without the R&S®QAR50-K10 76 - 81 GHz
With the R&S® QAR50-K10 72 - 82 GHz
Measurement quantities   1-way transmission loss
Transmission phase
Cycle time <  4 seconds
Polarization Vertical/horizontal
Verification set R&S®QAR50-Z44 for transmission loss and reflection
Distance between clusters 990 mm
Instrument dimensions C-shape 310 x 1420 x 970 mm
U-shape 310 x 970 x 1420 mm
Weight 78 kg
Electrical specifications
Licenses CE, UKCA, RCM, FCC*, KC, VDE, CSA*
Voltage rating 110 - 220 V
Power rating < 300 W
Interfaces Ethernet SCPI
Service level agreements Available worldwide

Available options

Frequency resolution

Order number 1343.2091.02


Frequency response

Frequency range extension to 72-82 GHz for transmission loss and reflection measurement. Detect and trace correct frequency adaptation of material (software license).

Phase image

Order number 1343.2110.02


Phasemask evaluation

Extends the measurement quantities of the instrument to transmission phase. Enables a homogeneity analysis of the radome / bumper (software License).

HD reflection image

Order number 1343.2133.02


HD Reflection

Unlocks the high resolution reflection imaging of the instrument. Supports quick detection of disturbances in R&D and correct DUT positioning (software license).

Verification kits

Order number 1343.0082.02


Verification set for transmission loss and reflection measurements

Allows the R&S®QAR50 to verify compliance with national and international standards. Ensures the high accuracy and repeatability of your measurement results.

Related resources

Application card: Characterizing the material properties of polymers for automotive applications

Automotive radar sensors can be well hidden behind bumpers, but require to be transmissible in the respective frequency domain. To select proper colors and coatings for such bumpers, the respective material properties must be known. This application card demonstrates a simplified method for material characterization in the automotive radar frequency domain (76 GHz to 81 GHz) based on the R&S®QAR50 automotive radome tester.

More information

Application video series: The complete guide to radome and bumper testing using the R&S®QAR50

The R&S®QAR50 automotive radome and bumper tester uses microwave imaging to give you deep insight into the material quality of your radomes during development and production but so much more. Watch this series of 14 application videos to get guidance on the options and capabilities of the QAR from measurement principles and calibration to frequency response and phase mask measurements.

More information

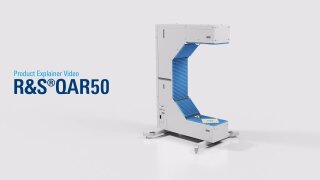

Explainer video: Explore the benefits of the R&S®QAR50

Explainer video: Explore the benefits of the R&S®QAR50

Discover why the R&S®QAR50 is the perfect tool for measuring automotive radomes and bumpers throughout the development lifecycle. From early R&D and material characterization through the complex molding processes of design emblems until end-of-line production testing.

More information

Measuring with the R&S®QAR50

Application video: Measuring with the R&S®QAR50

Learn more about the QAR50's measurement capabilities and unique features within this 5 minute video.

More information

Webinar: Ensuring automotive radome & bumper quality from design to high-volume production

Webinar: Ensuring automotive radome & bumper quality from design to high-volume production

Learn about how microwave imaging technology can be utilized to provide accurate, 2-dimentional characterisation of radome and bumper quality, accelerate the design cycle and facilitate seamless transition from development in the lab to high-volume production.

More information

Request information

Do you have questions or need additional information? Simply fill out this form and we will get right back to you.

Marketing permission

Your request has been sent successfully. We will contact you shortly.
An error is occurred, please try it again later.
