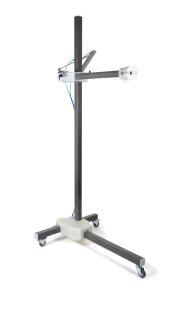

R&S®UAS universal antenna stand R&S®HK116 mounted on R&S®UAS R&S®UAS-B02 pneumatic polarization kit R&S®UAS-B01 22mm diameter tube-mount antenna adapter

Key facts

  • Highly maneuverable with four casters
  • Nonreflective attribute with Delrin®
  • Movable boom to accommodate longer antennas
  • Easy height adjustment, and manual polarization with quick-lock feature
  • Indoor and outdoor test site compatibility

Versatile antenna stand for different antenna types

Used primarily in EMC anechoic chambers, a key feature of the R&S®UAS is its functionality as it caters to different types of antennas. The R&S®UAS comes with an antenna adapter that is compatible with medium-sized Rohde & Schwarz EMC antennas. The R&S®UAS-B01 22 mm diameter tubemount antenna adapter (mounted directly on the standard R&S®UAS antenna adapter) is optionally available for other third-party antennas. The R&S®UAS also comes with the optional R&S®UAS-B02 pneumatic polarization kit, which can be remotely operated by using the R&S®OSP open switch and control platform together with the R&S®OSP-B103 digital I/O module and the R&S®EMC32 / R&S®ELEKTRA  EMC measurement software.

Adjustable boom height 0.25 m to 2.0m, manual adjustment
Polarization 0°, 90°, manual, pneumatic (optional)
Payload Max. 7 kg
Material Delrin®, fiberglass
Casters Yes
Overall dimension 720 mm × 1170 mm × 2020 mm
(2.36 ft × 3.84 ft × 6.63 ft)
Antenna stand weight 20 kg (44.09 lbs)
Accessories Includes adapter for medium-sized Rohde & Schwarz EMC antennas

Available options


Order number 5611.5229.02


22 mm Diameter TubeMount Antenna Adapter


Order number 5611.5235.02


Pneumatic Polarization Kit
