주요 사항
- 주파수 범위 5 kHz ~ 26.5 GHz
- SSB 위상 노이즈: 10 kHz에서 typ. –108 dBc(1 Hz)
- 프리앰프 사용 시 DANL: 10 MHz ~ 2 GHz에서 typ. –163 dBm
- 작은 설치 면적, 가벼운 무게
- 40 MHz 분석 대역폭(옵션)
FPL 제품군은 오실로스코프 또는 멀티미터처럼 RF 연구소의 필수 기기입니다. 한 대의 기기로 다양한 측정 작업이 가능합니다. 스펙트럼 분석 외에도 파워 센서를 이용한 고정밀 파워 측정, 아날로그 및 디지털 변조 신호의 분석에 활용할 수 있습니다.
하나의 기기에서 다양한 측정을 지원
FPL은 스펙트럼 측정, 파워 센서를 이용한 고정밀 파워 측정, 아날로그 및 디지털 변조 신호 분석에 사용할 수 있습니다.

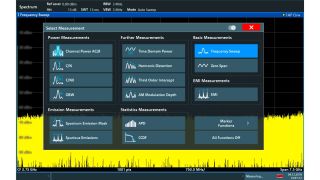

측정 모드
FPL 본체는 다양한 고급 스펙트럼 측정 모드를 기본으로 지원합니다.
낮은 위상 노이즈 및 DANL(Displayed Average Noise Level)
10 kHz 오프셋(1 GHz Carrier)에서 –108 dBc(1 Hz, typ.), +20 dBm의 3rd-order intercept point(typ.), 1 Hz ~ 10 MHz 분해능 대역폭을 지원하는 FPL은 –163 dBm(typ.)의 DANL(Displayed Average Noise Level)을 발휘해 고성능 측정기기에 손색이 없는 성능을 제공합니다. 이 기기는 연구소, 생산, 서비스 작업에 적합합니다.

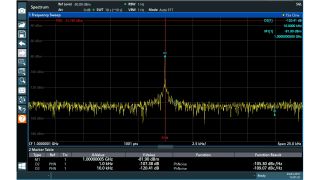

위상 노이즈 측정
마커 기능을 이용한 간단한 위상 노이즈 측정
스마트폰과 같은 직관적인 작동 방식
터치스크린을 사용하여 설정 및 측정 작업을 수행할 수 있습니다. 한 손가락으로 화면을 밀어 중심 주파수 또는 기준 레벨을 조정할 수 있습니다. 두 손가락 제스처로 표시 범위 또는 레벨 범위를 조정할 수 있습니다.

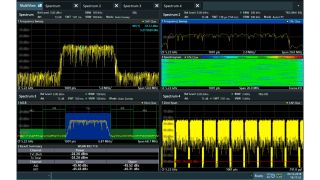

R&S®FPL1000의 멀티뷰
시퀀서가 스펙트럼 측정, 인접 채널 파워 측정, 시간 영역 측정 및 스펙트로그램 측정을 수행합니다.
어디에서나 사용 가능…
FPL은 6 kg의 가벼운 무게, 3시간 동안 작동 가능한 옵션 배터리 팩, 휴대용 가방 및 어깨끈이 함께 제공되어 어디에서나 사용할 수 있습니다.
FPL1000용 휴대용 가방
FPL1 휴대용 가방이 옵션으로 제공됩니다. R&S®FPL1-B31 배터리가 옵션으로 제공되어 이동 중에도 작동이 가능합니다.
주문 번호 1304.0004.03
주문 번호 1304.0004.07
주문 번호 1304.0004.14
주문 번호 1304.0004.26
주문 번호 1323.1902.02
정밀 기준 주파수 OCXO
고정밀 주파수 레퍼런스
주문 번호 1323.1883.02
추가 인터페이스
Video Out, IF Out, 노이즈 소스 컨트롤, AUX 포트, R&S®NRP 파워 센서용 커넥터
주문 번호 1323.1925.03
최대 3 GHz 내부 발생기
주문 번호 1323.1925.07
7/14/26.5 GHz용 내부 발생기
주문 번호 1323.1890.02
GPIB 인터페이스
GPIB를 통한 원격 제어용 추가 인터페이스, 플러그인 유닛
주문 번호 1323.1619.02
YIG 프리셀렉터 바이패스
최대 26.5 GHz 주파수에서 40 MHz 전체 대역폭을 분석할 수 있습니다
주문 번호 1353.6660.02
External generator control
주문 번호 1304.0427.02
SSD(Second Hard Disk)
(인쇄 회로 기판에 장착)
주문 번호 1323.1719.02
3/7.5 GHz용 RF 프리앰프
주문 번호 1323.1702.02
RF Preamplifier 14 GHz
주문 번호 1323.1777.02
RF Amplifier 26.5 GHz
주문 번호 1323.1990.02
전자 감쇠기(1dB 간격)
주문 번호 1323.1877.02
12/24 V 공급용 DC 전원 공급 장치
주문 번호 1323.1725.02
리튬 이온 배터리 팩
주문 번호 1323.1931.02
40MHz 분석 대역폭
R&S®ZNLx-B1 스펙트럼 분석 옵션용 40MHz 대역폭을 사용할 수 있습니다
주문 번호 1323.1731.02
AM/FM/φM 아날로그 변조 분석
R&S®ZVL을 진폭, 주파수 또는 위상 변조 신호의 아날로그 변조 분석기로 변환합니다. R&S®ZNLx-B1 필요,
주문 번호 1323.1754.02
R&S®NRP 파워 센서를 이용한 측정
파워 측정용 R&S®NRP 파워 센서를 지원합니다. R&S®ZNLx-B1 필요,
주문 번호 1323.1831.02
위상 노이즈 측정 애플리케이션
주문 번호 1323.1783.02
EMI 측정 애플리케이션
전자기 간섭 검출, 분류, 제거
주문 번호 1323.1748.02
벡터 신호 분석
R&S®FPL1-K70 Vector Signal Analysis 옵션은 디지털 방식으로 변조된 개별 신호를 비트 수준까지 분석할 수 있는 강력한 툴입니다.
주문 번호 1323.1625.02
다중 변조 분석
R&S®FPL1-K70M Multicarrier Modulation Analysis 애플리케이션(R&S®FPL1-K70 옵션 필요)을 사용하여 DVB‑S2X 신호를 분석할 수 있습니다.
주문 번호 1323.1631.02
PRBS 데이터를 이용한 BER 측정
R&S®FPL1-K70P(R&S®FPL1-K70 Vector Signal Analysis 옵션의 확장 버전)를 사용하여 PRBS 데이터의 raw BER(비트 오류율)을 PRBS23까지 측정할 수 있습니다.
주문 번호 1345.1011.06
소프트웨어
로데슈바르즈 신호 분석의 경험과 성능을 PC와 클라우드에 구현합니다
주문 번호 1320.7522.06
벡터 신호 분석
주문 번호 1320.7900.06
EUTRA/LTE
Narrowband IoT 분석
주문 번호 1345.1105.06
주문 번호 1320.7539.06
아날로그 변조 분석(AM/FM/φM)
AM/FM/φM modulated single carrier의 변조 분석
주문 번호 1320.7574.06
GSM 측정
GSM/EDGE/ EDGE Evolution
주문 번호 1320.7868.06
Transient 측정
Trancient 분석
주문 번호 1320.7874.06
Transient Chirp 측정
Transient 분석, R&S®VSE-K60 필요
주문 번호 1320.7880.06
Transient Hop 측정
Transient 분석, R&S®VSE-K60 필요
주문 번호 1320.7922.06
OFDM 신호 분석
주문 번호 1320.7545.06
EUTRA/LTE FDD 업링크 및 다운링크 측정 애플리케이션
LTE 신호 분석
주문 번호 1320.7551.06
EUTRA/LTE Advanced and MIMO(다운링크)
LTE 신호 분석
주문 번호 1320.7568.06
EUTRA/LTE TDD 업링크 및 다운링크 측정 애플리케이션
LTE 신호 분석
주문 번호 1338.8008.18
10 MHz ~ 18 GHz의 스마트 노이즈 소스
주문 번호 1338.8008.26
10 MHz ~ 26.5 GHz의 스마트 노이즈 소스
주문 번호 1323.1960.02
보호용 하드 커버
주문 번호 1323.1977.02
운반용 가방, 투명 커버
주문 번호 1323.1683.02
휴대용 베스트 홀스터
주문 번호 1323.1677.02
예비 배터리 팩
주문 번호 1323.1954.02
랙 마운트 키트(RAL5014 pigeon blue)
주문 번호 1323.1954.03
랙 마운트 키트(RAL5000 violet blue)
주문 번호 1353.6648.02
D-Sub cable for TTL-synchronization
주문 번호 1323.1290.02
Security write protection for solid-state drive
