혁신성. 정밀성. 미래 대응력

안테나 테스트 시스템 및 OTA 챔버

로데슈바르즈의 무선 기기 테스터 및 OTA(Over-the-Air) 안테나 테스트 솔루션에 대해 알아보십시오

로데슈바르즈는 전문적인 엔지니어링에 기반한 혁신 솔루션을 개발해온 경험을 바탕으로 최고의 안테나 시스템과 OTA 챔버를 제공하고 있습니다.

로데슈바르즈 솔루션은 사용하기 편리하도록 설계되었습니다. 로데슈바르즈는 레거시 기술을 최대한 지원하면서 미래에도 대응할 수 있는 최신 기술을 제공합니다. 또한, 전 세계에서 걸쳐 운영되는 전문 테크니션과 고객 지원 센터 네트워크로 더욱 신뢰할 수 있는 솔루션을 제공합니다.

제품 목록
비교
제품 이름
주파수 범위
차폐 효과
외관 치수(W x D x H [m])
저소음 구역(Quiet Zone)
애플리케이션
주파수 범위
18 GHz - 90 GHz
차폐 효과
>90 dB (typ.)
외관 치수(W x D x H [m])
0.9 x 1.5 x 2.0
저소음 구역(Quiet Zone)
Ø 30 cm
애플리케이션
R&D, 적합성 및 사전 적합성(RF, LBS, Netop, PCT, PQA)
주파수 범위
6 GHz ~ 110 GHz
차폐 효과
>90 dB (typ.)
외관 치수(W x D x H [m])
0.90 x 1.61 x 1.99
저소음 구역(Quiet Zone)
Ø 30 cm
애플리케이션
자동차 레이더 R&D, 교정, 검증, 사전 적합성 테스트
주파수 범위
20 GHz - 50 GHz
차폐 효과
>40 dB (typ.)
외관 치수(W x D x H [m])
0.8 x 1.0 x 2.1
저소음 구역(Quiet Zone)
Ø 20 cm
애플리케이션
R&D, 사전 적합성(RF, LBS, Netop, PCT, PQA)
주파수 범위
20 GHz - 50 GHz
차폐 효과
N/A
외관 치수(W x D x H [m])
1.2 x 0.6 x 0.8
저소음 구역(Quiet Zone)
Ø 20 cm
애플리케이션
벤치탑 R&D, 학계, 연구소
주파수 범위
18 GHz - 87 GHz
외관 치수(W x D x H [m])
1 x 1.5 x 2.1
저소음 구역(Quiet Zone)
Ø 4 cm @ 40 GHz
애플리케이션
R&D, 안테나 측정
주파수 범위
0.7 GHz - 77 GHz
차폐 효과
>80 dB
외관 치수(W x D x H [m])
0.45 x 0.7 x 0.6
저소음 구역(Quiet Zone)
Ø 2 cm @ 40GHz
애플리케이션
R&D, 생산, 5G FR1 & FR2 기기/구성 부품 LBS, NPT
주파수 범위
0.3 GHz - 14 GHz   또는   20 GHz - 77 GHz
차폐 효과
>60/80 dB
외관 치수(W x D x H [m])
0.45 x 0.7 x 0.6
애플리케이션
R&D, 생산, 5G FR2 기기/구성 부품
주파수 범위
0.4 GHz - 18 GHz
차폐 효과
> 100 dB
외관 치수(W x D x H [m])
0.77 x 0.7 x 0.76
저소음 구역(Quiet Zone)
-
애플리케이션
R&D, production sample testing, diagnostics
주파수 범위
0.3 GHz - 18 GHz
차폐 효과
>80 dB
외관 치수(W x D x H [m])
0.45 x 0.48 x 0.4
저소음 구역(Quiet Zone)
-
애플리케이션
R&D, 생산
주파수 범위
0.4 GHz - 6 GHz
차폐 효과
>60/80 dB
외관 치수(W x D x H [m])
0.32 x 0.27 x 0.53
저소음 구역(Quiet Zone)
-
애플리케이션
R&D
주파수 범위
1.7 GHz ~ 5 GHz
차폐 효과
챔버에 따라 다름
외관 치수(W x D x H [m])
챔버에 따라 다름
저소음 구역(Quiet Zone)
1.5 m 거리에서 직경 1.05 m
애플리케이션
R&D 및 생산용 기지국 테스트
03 제품 비교
2 개 이상의 제품 선택

관련 주제

5G

미래에 대응하는 유연한 5G 신호 발생 및 분석 및 OTA(over-the-air) 테스트 솔루션

추가 정보

LTE / LTE-A / LTE-A Pro

4G 테스트의 모든 측면을 지원하는 유연한 모듈식 테스트 솔루션

추가 정보

무선 연결

WLAN/Wi-Fi, Bluetooth® 등 Non-Cellular 표준용 빠른 테스트 솔루션.

추가 정보

안테나 테스트

MIMO 및 능동 빔포밍 시스템 설계 및 테스트

추가 정보

관련 제품

R&S®CMP200

제품 정보

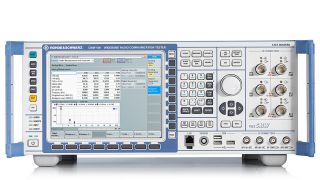

R&S®CMW500
