Key facts
The R&S®PR200 portable monitoring receiver is engineered to effectively support spectrum monitoring, interference hunting, spectrum clearance and site testing. It reliably detects, analyzes and locates signals from 8 kHz to 8 GHz. Optimized for field operations, it is a perfect balance between RF performance and operability, while offering a range of measurement functions suitable for complex 5G signals.
Designed by experts
The R&S®PR200 offers high-speed digital signal processing for seamless, real time signal capturing and processing. The state-of-the-art design incorporates current spectrum monitoring sensor features and capabilities in a handheld format.
Simplified diagram of digital signal processing in the R&S®PR200
The R&S®PR200 is based on classic Rohde & Schwarz monitoring receiver designs for a two-path digital downconverter (DDC) with parallel monitoring and uninterrupted demodulation
Comprehensive tools for spectrum monitoring, signal analysis and geolocation
Polychrome with waterfall display
The polychrome display reveals hidden signals that may otherwise be invisible
Optimized for size, weight and power
Manual direction finding with the R&S®HE400
Manual homing direction finding and automatic triangulation with the R&S®HE400 handheld directional antenna and legacy handheld directional antennas
Well-designed user interface for easy operation
Smartphone application
The smartphone application provides easy homing operations
Optimized for field use
Quick disconnect and use with R&S antennas
The connectors can be easily connected and disconnected
The smallest details make the difference

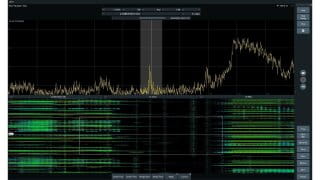

Replay of results
Recorded signals of 2.4 GHz ISM band evaluated offline with the I/Q analysis app on the R&S®PR200 GUI
Order number 4500.7070.02
Panorama scan
Fast spectrum/monitoring scan over the entire frequency range
Order number 4500.7040.02
Polychrome spectrum
Display of signal level occurence in a color-coded spectrum
Order number 4500.7211.02
Field strength measurement
Field strength measurements in line with ITU recommendations
Order number 4500.7340.02
Modulation measurement
Analog modulation measurements in line with ITU recommendations
Order number 4500.7311.02
Spectral measurement
Occupied bandwidth and channel power measurements in line with ITU recommendations
Order number 4500.7111.02
Time domain measurement
Simultaneous frequency and time domain analysis
Order number 4500.7370.02
Direction finding upgrade
Direction finding for a selected signal in the real-time bandwidth
Order number 4500.7240.02
Trace recording and replay
Recording and replay of spectrum traces, measurement results and audio
Order number 4500.7270.02
IQ snapshot record, replay & analysis
Record, replay, and analysis of IQ data up to 40 MHz from internal memory
Order number 4500.7140.02
Mapping and geotagging
Display of measurement results on a map
Order number 4500.7170.02
Timestamp accuracy
Accurate timestamps and external GNSS support
Order number 4104.6000K02
Handheld directional antenna
8 kHz to 8 GHz; integrated switchable LNA; electronic compass and GNSS; automatic module recognition; trigger function
Order number 4104.6000K04
Basic handheld directional antenna
8 kHz to 20 GHz; fully passive; mechanical compass
Order number 4104.6000.05
Handheld directional antenna with downconverter
20 MHz to 20 GHz; integrated downconverter; integrated switchable LNA; electronic compass and GNSS; automatic module recognition; trigger function
Order number 4115.6006.03
Handheld directional antenna with downconverter
18 GHz to 33 GHz; integrated antenna; integrated downconverter; integrated switchable LNA; electronic compass and GNSS; trigger function
Order number 4104.8002.02
HF antenna module, 8 kHz to 30 MHz
Order number 4104.8202.02
VHF antenna module, 20 MHz to 200 MHz
Order number 4104.6900.02
UWB antenna module, 30 MHz to 6 GHz
Order number 4104.8402.02
Log-periodic antenna module, 450 MHz to 8 GHz
Order number 4104.7306.02
Cellular antenna module, 700 MHz to 2.5 GHz
Order number 4104.7606.02
S band and C band antenna module, 1.7 GHz to 6 GHz
Order number 4104.8602.02
SHF antenna module, 5 GHz to 20 GHz
Order number 4090.7005.02
Compact VHF/UHF DF antenna
20 MHz to 1.3 GHz; vertical polarization; for installation on a vehicle roof, tripod or carrying harness; integrated GPS
Order number 4096.0002.02
Compact UHF/SHF DF antenna
600 MHz to 6 GHz; vertical polarization; for installation on a vehicle roof, tripod or carrying harness; integrated GPS
Order number 4096.0002.12
Compact passive UHF/SHF DF antenna
600 MHz to 6 GHz; vertical polarization; for installation on a vehicle roof; tripod or carrying harness; integrated GPS; entirely passive from 600 MHz to 2.9 GHz
Order number 4098.2002.07
Collapsible VHF/UHF DF antenna
20 MHz to 690 MHz; vertical polarization; for installation on a tripod or portable mast; integrated GPS
Order number 1321.1340.02
Vehicle adapter
Powers the instrument and the R&S®HA-Z303 external battery charger
Order number 1321.1328.02
External battery charger
Charges batteries outside of the instrument
Order number 1321.1334.02
Battery pack
Lithium-ion battery with discharge indicator, 6.4 Ah
Order number 1309.6198.00
Carrying holster
Including chest harness and rain cover
Order number 3589.9458.00
Accessory for R&S®HA-Z222
Sun shade and carrying handle for carrying holster
Order number 4071.9258.02
Suitcase kit
Hard-shell suitcase with headphones, telescopic antenna and storage space for R&S®PR200
Order number 4104.9009.02
Transport case
Hard-shell case for R&S®PR200 and R&S®HE400 with up to 5 antenna modules
Order number 4104.9050.02
Transport bag (small) for R&S®HE400
Order number 4104.9080.02
Transport bag (large) for R&S®HE400
Order number 4090.8801.02
Vehicle adapter with magnet mount
Vehicle roof installation for R&S®ADD107/R&S®ADD207/R&S®ADD207P
Order number 4090.8860.02
Wooden tripod
Tripod installation for R&S®ADD107/R&S®ADD207/R&S®ADD207P
