R&S®DVMS Digital TV Monitoring System Family

Ensuring high quality of digital TV network operation

R&S®DVMS Digital TV Monitoring System Family
Open Lightbox
R&S®DVMS Digital TV Monitoring System Family
Open Lightbox
R&S®DVMS Digital TV Monitoring System Family
Open Lightbox
R&S®DVMS Digital TV Monitoring System Family
Open Lightbox
R&S®DVMS Digital TV Monitoring System Family
Open Lightbox

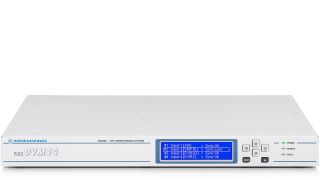

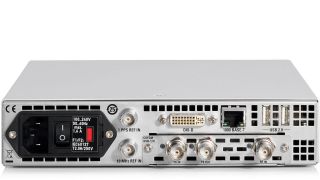

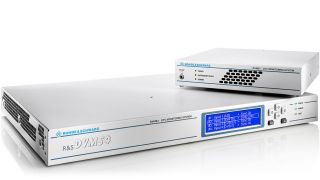

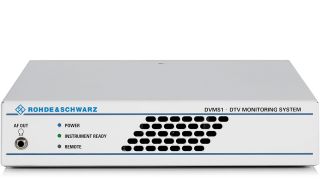

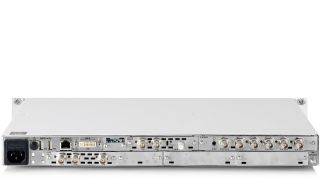

R&S®DVMS Digital TV Monitoring System Family, Front HighR&S®DVMS Digital TV Monitoring System Family, Application ImageR&S®DVMS Digital TV Monitoring System Family, Back viewR&S®DVMS Digital TV Monitoring System Family, Front viewR&S®DVMS Digital TV Monitoring System Family, Back view

Key facts

  • Simultaneous monitoring of up to four signals
  • RF modules for DVB-T/DVB-T2 and DVB-S/DVB-S2
  • IP module for electrical and optical (SFP) connections (TS over IP)
  • Support for DVB, ATSC and ISDB-T/ISDB-TB transport streams
  • T2-MI and BTS support

Detect problems before your viewers do - 24/7

The R&S®DVMS family is a professional, attractively priced, compact solution for monitoring digital TV networks. It includes the R&S®DVMS1 and the R&S®DVMS4. Typical fields of applications are signal monitoring at the transmitter site, satellite uplink and headend. The instruments monitor an extensive amount of RF and TS characteristics and immediately generate an alarm when a problem is detected.

Features & benefits

Immediate error detection

  • Extensive RF measurements for DVB-T/DVB-T2 and DVB‑S/DVB‑S2 signals
  • Extensive IP measurements
  • Template function for transmission parameters
  • Monitoring of DVB, ATSC and ISDB specific TS
  • T2-MI monitoring
  • Template function for transport stream characteristics
  • Detection of transport stream changes
  • Data rate monitoring
  • EPG/EIT monitoring
  • MIP monitoring in SFN networks
  • Encryption monitoring

Open Lightbox

Extensive template monitoring

Extensive analysis and visualization functions

  • Constellation display
  • Spectrum display (DVB-T and DVB-T2)
  • Echo pattern display (DVB-T and DVB-T2)
  • MDI display (IP flows)
  • Thumbnail display
  • EPG display
  • Graphic display of data rates and table repetition rates
  • Table interpreter
  • PCR analysis
  • PTS analysis
  • Elementary stream analysis for video and audio according to the buffer model
  • Analysis of DVB object and data carousels
  • Analysis of video encoding quality (qPSNR analysis)

Open Lightbox

SFN characteristics and monitoring limits

Simple operation and configuration

  • Clearly structured dialogs for all settings (monitoring characteristics, signal input and instrument)
  • Detailed configuration capabilities for all monitoring functions and limits
  • Convenient callup of measurement functions via the View Selector selection window
  • Protection against unauthorized use by defining user‑specific operation rights

Open Lightbox

View Selector

Extensive range of monitoring features

  • Monitoring of multiple DVB-T/DVB-H and DVB-S/DVB-S2 signals through a single input with Scheduler Suite
  • Triggered recording and archiving of transport stream segments
  • Detailed monitoring and error logging
  • Different profiles for bit rate measurements for long-term and peak evaluation
  • Permanent or temporary suppression of error messages with Hiding of Events function

Open Lightbox

Error counters

Powerful network functions

  • Multiple user access via standard web browser (Java‑based) or VNC viewer
  • Integration in network management systems via built-in SNMP interface
  • Simple data exchange using FTP
  • Firewall-protected access
  • Streaming of a selected program or PID to any point in the network

Open Lightbox

NMS integration

Available models

Available models
Number of module slots
Maximum number of simultaneously monitored inputs
Signal interfaces integrated in base unit
Total maximum input bit rates across all inputs
Integrated display


Order number 2113.9305.02

Number of module slots
Maximum number of simultaneously monitored inputs
4 (1 × TS and/or 1 × RF or 4 × TS IP)
Signal interfaces integrated in base unit
Total maximum input bit rates across all inputs
360 Mbit/s (IP), 86 Mbit/s (ASI + RF)
Integrated display
½ rack


Order number 2113.7560.02

Number of module slots
Maximum number of simultaneously monitored inputs
4 (TS, RF and TS IP in any combination)
Signal interfaces integrated in base unit
4 × TS (ASI)
Total maximum input bit rates across all inputs
360 Mbit/s (IP + ASI + RF)
Integrated display
1 rack

Available options


Order number 2113.8850.03


DVB-T/T2 receiver module


Order number 2113.8950.02


DVB-S/DVB-S2 receiver module


Order number 2113.8938.02


IP module


Order number 2113.8896.02


Single TS input module

Module options

Order number 2113.9292.02


DVB-T2 demodulator


Order number 2113.9286.02


DVB-T demodulator


Order number 2113.9228.02


Spectrum and shoulder attenuation for R&S®DVMS-B53/R&S®DVMS-B54


Order number 2113.9192.02


Impulse response


Order number 2113.9205.02


High-quality MER measurement


Order number 2113.9240.02


Monitoring option package

(including R&S®DVMS-K11, R&S®DVMS-K12 and R&S®DVMS-K18)


Order number 2113.9257.02


Analysis option package

(including R&S®DVMS-K16, R&S®DVMS-K17, R&S®DVMS-K19 and R&S®DVMS-K20)


Order number 2113.9028.02


TS monitoring


Order number 2113.9034.02


Advanced TS monitoring


Order number 2113.9234.02


DVB T2-MI extension


Order number 2113.9040.02


TS template monitoring


Order number 2113.9086.02


TS capture


Order number 2113.9063.02


EPG display


Order number 2113.9070.02


Thumbnail display


Order number 2113.9092.02


PCR/PTS analysis


Order number 2113.9105.02




Order number 2113.9111.02


qPSNR analysis


Order number 2113.9128.02


Carousel and MPE analysis


Order number 2113.9134.02


DVB-H analysis


Order number 2113.9140.02


Buffer analysis


Order number 2082.0490.35


Calibration documentation


Order number 1173.6506.02


Printout of DCV


Order number 2113.9886.00


19' adapter for 1 x R&S®DVMS1 in 1 HU
