R&S®SAM100 system amplifier

R&S®SAM100 system amplifier
Open Lightbox
R&S®SAM100 system amplifier
Open Lightbox
R&S®SAM100 system amplifier
Open Lightbox
R&S®SAM100 system amplifier
Open Lightbox
R&S®SAM100 system amplifier, Front viewR&S®SAM100 system amplifier, Hero viewR&S®SAM100 system amplifier, Back viewR&S®SAM100 system amplifier, Application Image

Key facts

  • Ultra-broadband frequency range: 2 GHz - 20 GHz
  • Output power: 20 W Psat and higher
  • High gain with low noise <8 dB and excellent linearity
  • Very suitable for AM, FM, PM, PhiM, OFDM
  • Compact, modular and robust for DVT / PVT and EMC
  • 3-year warranty extension

The perfect combination of high performance, wide bandwidth and low noise

The R&S®SAM100 system amplifier is an ultra-broadband solid state microwave amplifier with a frequency range from 2 GHz to 20 GHz. With a power of up to 20 W, outstanding linearity and very good noise characteristics, the R&S®SAM100 amplifier is ideal as a compact system amplifier in various measurement setups e.g. design (DVT) and product validation test (PVT) or EMC. In measurement environments with R&S generators, frequency analyzers or network analyzers, they can act as drivers or boosters and amplify the measurement signals. The R&S®SAM100 is also an excellent alternative to tube amplifiers as well as for multi-band assemblies consisting of narrow-band single amplifiers.

Features & benefits

Broadband amplification

Robust state-of-the-art solid-state technology for low-noise amplification

Ultra-Light and very compact 20 W microwave amplifier with the highest power density and a very low noise power density of << –100 dBm (1 Hz) at a bandwidth of one decade from 2 GHz – 20 GHz realized with the latest GaN-HEMT technology and a sophisticated thermal design using the heat pipe technology offers the user the possibility to amplify test signals for the design, testing and validation of RF components and devices.

R&S®SAM100 RF output power & noise figure
Open Lightbox

R&S®SAM100 RF output power & noise figure

Compact and modular

Flexible in use

With their modular, compact design, the R&S®SAM100 amplifiers can be used excellently in 19” system racks and PXI frames. They are also available as mobile desktop devices. In particular, their digital control interface predestines these amplifiers for integration into automatic test systems (ATE Systems). Its patented plug-in system for the microwave input and output plugs allows a choice between 2.92 mm or 3.5 mm plugs.

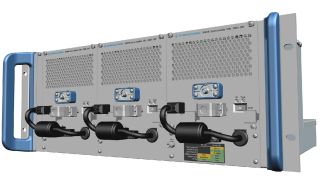

Up to 3x R&S®SAM100 in a 19“ rack frame for easy integration in Automated Test Systems (ATE)
Open Lightbox

Up to 3x R&S®SAM100 in a 19“ rack frame for easy integration in Automated Test Systems (ATE)

Available models

Available models
Frequency range
Output power Psat


Order number 5358.9005K50

Frequency range
2 GHz - 20 GHz
Output power Psat
20 W

Available options


Order number 5358.2930.02


Mounting kit desktop case


Order number 5358.2923.02


Frame mounting kit


Order number 5358.2917.02


19" frame for up to 3 × R&S®SAM100


Order number 5358.2900.02


Adapter 2,92 mm


Order number 5358.2900.03


Adapter 3,5 mm
