Key facts
The R&S®PR300 is a wideband, high-speed monitoring and single-channel DF receiver. It reliably detects signals from 8 kHz to 8 GHz. The receiver can be extended to 20 GHz with the R&S®HE400DC and to 33 GHz with the R&S®HE800-DC30. The receiver also supports single-channel direction finding accurate down to less than a degree with the R&S®ADDx07 DF antenna. Scanning speeds of over 500 GHz/s power fast signal detection beyond real-time bandwidth. The carefully engineered receiver architecture and technology can cope with ever more challenging spectrum-related operations such as monitoring, detection, interference hunting (unintentional and malicious), direction finding and geolocation.
Designed by experts
The R&S®PR300 comes with enhanced high performance DSP for seamless, real time signal capturing, direction finding and processing. The advanced design incorporates current spectrum monitoring sensor features and capabilities in a handheld format.
Simplified diagram of digital signal processing in the R&S®PR300
The R&S®PR300 is designed with dual channel digital downconverter (DDC) which provides simultaneous monitoring and uninterrupted demodulation.
Tool set for mastering spectrum monitoring, direction finding and analysis

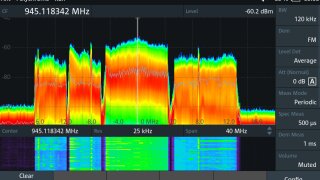

Polychrome with waterfall display
The polychrome display reveals hidden signals that may otherwise be invisible
Monitoring of non-continuous bands
The R&S®PR300 offers up to 4 spectrum segment for non-continuous bands monitoring. This allow user to continously focus on band of interest.

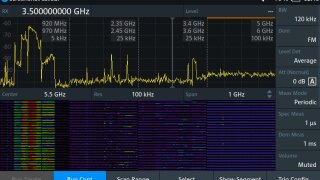

Four spectrum segments at different frequency range, span and resolution
Accelerated spectral profiling with dedicated scanning architecture
The R&S®PR300 has all the agility needed for successful spectrum scans. Multiple scan modes such as, panorama scan (PSCAN), horizontal scan (HSCAN), frequency scan (FSCAN) and memory scan (MSCAN) with various trigger options are flexible enough for spectrum surveillance applications.

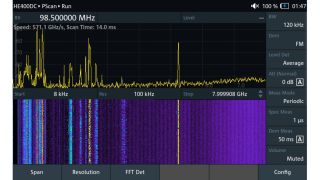

Superfast PScan over the entire operation frequency range
Simultaneous signal representation in the frequency and time domain
The R&S®PR300-ZS time domain measurement option provides simultaneous signal representation in the frequency and time domain with up to 125 MHz real-time bandwidth. Time gated spectrum features allow user to isolate spectrum of same frequency signals form different transmitter. For example, isolation of uplink and downlink signals while they share the same frequency in TDD Networks.

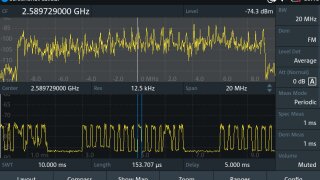

Simultaneous time domain data with corresponding time gated frequency spectrum display
