R&S®RTP Oscilloscope

Just got better.

R&S®RTP Oscilloscope
Abrir Lightbox
R&S®RTP Oscilloscope
Abrir Lightbox
R&S®RTP Oscilloscope
Abrir Lightbox
R&S®RTP Oscilloscope
Abrir Lightbox
R&S®RTP Oscilloscope
Abrir Lightbox

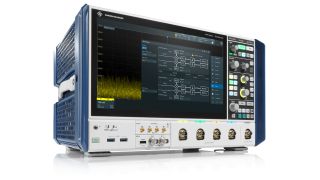

R&S®RTP oscilloscope, front view R&S®RTP164B oscilloscope, side view R&S®RTP164B, I/Q mode R&S®RTP oscilloscope, back low R&S®RTP Oscilloscope

Key Facts

  • Bandwidth: 4 GHz to 16 GHz
  • Max. sample rate: 40 Gsample/s
  • Max. memory depth: 3 Gpoints per channel
  • Up to 16 bit resolution
  • All trigger events at full bandwidth

Signal integrity in real time

The R&S®RTP high-performance oscilloscope combines high-class signal integrity with a fast acquisition rate. Customized frontend ASIC and real-time processing hardware enable highly accurate measurements with unprecedented speed in a compact form factor.

  • 750,000 waveforms/s to find faults fast
  • High-precision digital trigger with no bandwidth limitations
  • Real-time deembedding for triggering and fast acquisition
  • Compact design and silent operation to best fit any lab
  • Precise measurements with flat frequency response of +/- 0.25 dB

Features & benefits

Real-time signal integrity

Fastest high accuracy measurements

Rohde & Schwarz has the in-house expertise to design the best analog integrated circuits. Powerful processing components directly downstream from the A/D converters enable real-time correction of transmission paths from the DUT, retaining the maximum acquisition rate of 750,000 waveforms/s.

  • Flat frequency response and high spurious-free dynamic range for precise measurements
  • Real-time deembedding for fast acquisition and precise triggering
  • Real-time math for differential signals
  • Hardware-accelerated histogram and mask test
  • Increase real-time resolution with 16-bit HD mode

Real-time deembedding architecture
Abrir Lightbox

Real-time deembedding architecture

The R&S®RTP allows waveform correction in real time for fast waveform acquisition up to 750,000 waveforms/s and precise triggering.

Multi-instrument capability

Time-correlated measurements on integrated devices

The R&S®RTP oscilloscope combines several test instrument capabilities for time-correlated analysis of multiple signal types in a single box:

  • High bandwidth analog channels for  measuring high-speed signals and wideband RF transmitters
  • Fast and responsive FFT for analysis in the frequency domain
  • General purpose 16 ch, 400 MHz MSO for logic analysis or protocol based testing of low-speed serial buses
  • Select from the broad portfolio of serial protocol options
  • Multiple 18-bit high-precision voltage and current channels (4 + 4)
  • 2 ch 100 MHz arbitrary waveform generator
  • 16 GHz differential pulse source

Multi-instrument capability of the R&S®RTP oscilloscope
Abrir Lightbox

Multi-instrument capability of the R&S®RTP oscilloscope

All tools are integrated in a single instrument with a consistent interface

Compact and configurable

Future-proof 4 to 16 GHz platform for any lab

The R&S®RTP platform is designed for minimal bench space and quiet operation. Multiple option slots and upgrade paths for bandwidth and memory make for a safe investment and a future-proof platform.

  • Most compact and silent high-performance oscilloscope for your lab
  • Expand as your requirements grow: 4 hardware option slots, software option, bandwidth and memory upgrade
  • Quickly operate instrument via touchscreen and established Rohde & Schwarz graphical user interface

R&S®RTP future-proof platform
Abrir Lightbox

R&S®RTP future-proof platform

The R&S®RTP high-performance oscilloscope is suitable for daily debug work in the lab and can grow with your requirements.

Available models

Available models
Modelos
Bandwidth
Channels
Sample rate
Max. memory depth
Optional MSO

R&S®RTP044B

Order Number 1803.7000.04

Bandwidth
4 GHz
Channels
4
Sample rate
40 Gsample/s
Max. memory depth
3 Gpts
Optional MSO
16 digital channels

R&S®RTP064B

Order Number 1803.7000.06

Bandwidth
6 GHz
Channels
4
Sample rate
40 Gsample/s
Max. memory depth
3 Gpts
Optional MSO
16 digital channels

R&S®RTP084B

Order Number 1803.7000.08

Bandwidth
8 GHz
Channels
4
Sample rate
40 Gsample/s
Max. memory depth
3 Gpts
Optional MSO
16 digital channels

R&S®RTP134B

Order Number 1803.7000.13

Bandwidth
13/8 GHz
Channels
2/4
Sample rate
40 Gsample/s
Max. memory depth
3 Gpts
Optional MSO
16 digital channels

R&S®RTP164B

Order Number 1803.7000.16

Bandwidth
16/8 GHz
Channels
2/4
Sample rate
40 Gsample/s
Max. memory depth
3 Gpts
Optional MSO
16 digital channels
Specifications
Vertical system
Analog channels 4
Digital channels (opt.) 16
Bandwidth (-3 dB) R&S®RTP044B;
R&S®RTP064B;
R&S®RTP084B;
R&S®RTP134B;
R&S®RTP164B
4 GHz
6 GHz
8 GHz
13 GHz (2 channels interleave)
16 GHz (2 channels interleave)
Input impedance 50 Ω
Input sensitivity Max. bandwidth in all ranges 50 Ω: 2 mV/div to 1 V/div
Acquisition system
Real-time sampling rate R&S®RTP044B/064B/084B/134B/164B 40 Gsample/s (2 channels interleaved)
20 Gsample/s on each channel
Acquisition memory Standard configuration 100 Mpoints on 4 channels;
400 Mpoints on 1 channel
Max. upgrade (R&S®RTP-B130 option)  3 Gpoints on 4 channels;
3 Gpoints on 2 or 1 channels
Max. acquisition rate Continuous acquisition and display, 2 channels on,
20 Gsample/s, 1 kpoints, dot mode
> 750000 waveforms/s
Real-time processing Differential signal math Real-time calculation of differential and common mode signals from two input channels; can be used as trigger source
Deembedding (optional) Real-time deembedding of signal path characteristics based on S-parameters
Horizontal system
Timebase range  20 ps/div to 10000 s/div
Accuracy (after delivery/calibration)  OCXO as standard, after delivery/calibration ±0.01 ppm
During calibration interval ±0.1 ppm
Trigger system
Standard trigger types All trigger types up to full bandwidth; based on real-time deembedding (optional) edge, glitch, width, runt, window, timeout, interval, slew rate, data2clock, pattern, state, TV/video, serial protocol triggers (optional), zone trigger (optional), high speed serial pattern with 16 Gbps CDR (optional)
Zone trigger (opt.) Logical combination of max. 8 polygons; intersect or not intersect source: measurement channels, spectrum, math
functions
Trigger sensitivity Definition of trigger hysteresis Automatic or manually adjustable from 0 div to
5 div
General data
Dimensions W × H × D 441 mm × 285 mm × 316 mm
(17.36 in × 11.22 in × 12.44 in)
Weight 18 kg (39.68 lb)
Display 13.3" LC TFT color display with capacitive touchscreen,
1920 × 1080 pixel (Full HD)
Interfaces 1 Gbps LAN, type A: 4 × USB 3.1, type B: 1 × USB 3.1, GPIB (standard), HDMI™ 2.0 and DP++ 1.3 for external monitor, external trigger with active probe interface, trigger output, ref in: 1 MHz to 20 MHz, ref out: 10 MHz, 2 option slots on front side, 2 option slots on rear side for upgrading with various hardware options (MSO (16 channels, 400 MHz), R&S®RT-ZVC (4+4 high-precision voltage and current channels), 2 ch 100 MHz arbitrary waveform generator, 16 GHz differential pulse source)
Operating system Windows

Available options

Hardware options
Product
Descripción

Order Number 1333.2424.02

Descripción

Mixed signal option

Adds 16 digital channels to R&S®RTP oscilloscopes.

Order Number 1337.9581.02

Descripción

Digital Extension Port for R&S®RTP

Required for R&S®RT-ZVC02 and R&S®RT-ZVC04 Hardware. Included in R&S®RTP-B1

Order Number 1333.2418.02

Descripción

Arbitrary Waveform Generator

R&S®RTP-B7

Order Number 1333.2001.02

Descripción

Differential 16 GHz pulse source for R&S®RTP high-performance oscilloscope

Contains an accessory bag with 2 SMA cables, 4 SMA terminations, 2 SMA(f) to SMA(f) adapters, 2 SMA shorts and 1 ESD wrist strap with grounding cord.

Order Number 1326.0259.04

Descripción

Multi-channel power probe

1 MHz, 5 MSa/s, 18 Bit, 4 current inputs, 4 voltage inputs

R&S®RTP-B19

Order Number 1337.9498.02

Descripción

Replacement SSD including firmware for R&S®RTP oscilloscopes

R&S®RTP-B20

Order Number 1803.6410.02

Descripción

Front handles for R&S®RTP oscilloscopes

R&S®RTP-B21

Order Number 1338.0507.02

Descripción

Adapter for rear option slot

Memory upgrade
Product
Descripción
R&S®RTP-B102

Order Number 1337.9517.02

Descripción

Memory upgrade to 200 Mpoints per channel

R&S®RTP-B105

Order Number 1337.9523.02

Descripción

Memory upgrade to 500 Mpoints per channel

R&S®RTP-B110

Order Number 1337.9530.02

Descripción

Memory upgrade to 1 Gpoints per channel

R&S®RTP-B120

Order Number 1803.6455.02

Descripción

Memory upgrade to 2 Gpoints per channel

R&S®RTP-B130

Order Number 1803.6610.02

Descripción

Memory upgrade to 3 Gpoints per channel

Bandwidth upgrade
Product
Descripción
R&S®RTP-B0406

Order Number 1803.6261.02

Descripción

Bandwidth upgrade to 6 GHz for R&S®RTP044B

R&S®RTP-B0408

Order Number 1803.6278.02

Descripción

Bandwidth upgrade to 8 GHz for R&S®RTP044B

R&S®RTP-B0413

Order Number 1803.6284.02

Descripción

Bandwidth upgrade to 13 GHz for R&S®RTP044B

R&S®RTP-B0416

Order Number 1803.6290.02

Descripción

Bandwidth upgrade to 16 GHz for R&S®RTP044B

R&S®RTP-B0608

Order Number 1803.6303.02

Descripción

Bandwidth upgrade to 8 GHz for R&S®RTP064B

R&S®RTP-B0613

Order Number 1803.6310.02

Descripción

Bandwidth upgrade to 13 GHz for R&S®RTP064B

R&S®RTP-B0616

Order Number 1803.6326.02

Descripción

Bandwidth upgrade to 16 GHz for R&S®RTP064B

R&S®RTP-B0813

Order Number 1803.6332.02

Descripción

Bandwidth upgrade to 13 GHz for R&S®RTP084B

R&S®RTP-B0816

Order Number 1803.6349.02

Descripción

Bandwidth upgrade to 16 GHz for R&S®RTP084B

R&S®RTP-B1316

Order Number 1803.6355.02

Descripción

Bandwidth upgrade to 16 GHz for R&S®RTP134B

Serial triggering and decoding
Product
Descripción

Order Number 1803.6626.02

Descripción

Bus analysis: bus measurements and analysis functions

Order Number 1803.6632.02

Descripción

Low speed serial buses trigger and decode package  I2C, SPI, RS-232, UART, Manchester, NRZ

Order Number 1803.6649.02

Descripción

Automotive protocols trigger and decode package: CAN incl. CAN-dbc file import, CAN-FD, LIN

Order Number 1803.6655.02

Descripción

Aerospace protocols trigger and decode package: MIL-STD-1553, ARINC 429, SpaceWire

Order Number 1803.6661.02

Descripción

Ethernet protocols trigger and decode package: 10BASE-T, 100BASE-TX, MDIO

Order Number 1803.6678.02

Descripción

MIPI high speed trigger and decode package: MIPI RFFE

Order Number 1803.6684.02

Descripción

Automotive Ethernet trigger and decode package: IEEE 100BASE-T1, IEEE 1000BASE-T1

Order Number 1803.6690.02

Descripción

USB protocols trigger and decode package: USB 1.0/1.1, USB 2.0/HSIC, USB 3.2 Gen 1, USB 3.2 Gen2, USB Power Delivery (USB-PD), USB SSIC

Order Number 1803.6703.02

Descripción

MIPI high-speed trigger and decode package: MIPI D-PHY, MIPI M-PHY, UniPro, decoding for DSI and CSI-2

Order Number 1803.6726.02

Descripción

Custom trigger and decode package: NRZ, Manchester, 8B 10B

Order Number 1337.8604.02

Descripción

I2C/SPI serial triggering and decoding

Order Number 1337.8610.02

Descripción

RS-232/UART serial triggering and decoding

Order Number 1337.8627.02

Descripción

CAN/LIN serial triggering and decoding

Order Number 1800.6654.02

Descripción

MIL-STD-1553 serial triggering and decoding

Order Number 1800.6660.02

Descripción

ARINC 429 serial triggering and decoding

Order Number 1337.8633.02

Descripción

10/100BASE-T Ethernet serial decoding

Order Number 1337.8640.02

Descripción

CAN-FD serial triggering and decoding

Order Number 1800.6648.02

Descripción

Bus analysis

Order Number 1337.8733.02

Descripción

MIPI RFFE serial triggering and decoding

Order Number 1337.8740.02

Descripción

MIPI D-PHY serial triggering and decoding

Order Number 1337.8756.02

Descripción

MIPI M-PHY/ UniPro serial triggering and decoding

Order Number 1337.8762.02

Descripción

Manchester and NRZ serial triggering and decoding

Order Number 1337.8779.02

Descripción

8b10b serial decoding

Order Number 1337.8785.02

Descripción

MDIO serial triggering and decoding

Order Number 1800.6548.02

Descripción

100BASE-T1

Order Number 1800.6702.02

Descripción

1000Base-T1 T&D

Order Number 1337.8791.02

Descripción

USB 1.0/1.1/2.0/HSIC serial triggering and decoding

Order Number 1337.8804.02

Descripción

USB 3.1 Gen 1 serial triggering and decoding

Order Number 1337.9100.02

Descripción

USB 3.1 Gen 2 serial triggering and decoding

Order Number 1337.8810.02

Descripción

USB Power Delivery (USB-PD) serial triggering and decoding

Order Number 1337.9117.02

Descripción

USB SSIC serial triggering and decoding

Order Number 1800.6677.02

Descripción

SpaceWire serial triggering and decoding

Order Number 1337.8827.02

Descripción

PCI Express 1.x/2.x serial triggering and decoding

Compliance tests
Product
Descripción

Order Number 1337.8685.02

Descripción

USB2.0 compliance test software

Order Number 1337.8691.02

Descripción

Ethernet compliance test software for 10M/100M/1G-Base-T Ethernet

Order Number 1337.8704.02

Descripción

Ethernet compliance test software for 10G-Base-T Ethernet

Order Number 1800.6531.02

Descripción

100BASE-T1 Compliance

Order Number 1337.8710.02

Descripción

2.5G/5GBASE-T compliance test software.

Order Number 1337.8727.02

Descripción

MIPI D-PHY compliance test software, V1.1/ 1.2

Order Number 1800.5993.02

Descripción

R&S®MIPI D-PHY compliance test software, V2.1/2.5

Order Number 1802.9621.02

Descripción

R&S®MIPI C-PHY compliance test software, V2.1

Order Number 1337.8885.02

Descripción

PCI Express Revision 1.1/ 2.0 (2.5 GT/s) compliance test software

Order Number 1800.6954.02

Descripción

PCI Express Revision 1.1/2.0/3.0 compliance test software

Order Number 1337.8833.02

Descripción

Energy efficient ethernet compliance test software for 10M/100M/1G-Base-T Ethernet

Order Number 1800.6554.02

Descripción

1000BASE-T1 Compliance test

Order Number 1800.6725.02

Descripción

MultiGBASE-T1 Ethernet compliance test

Order Number 1800.6719.02

Descripción

10BASE-T1 Ethernet compliance test

Order Number 1337.8840.02

Descripción

DDR3/DDR3L/LPDDR3 Signal integrity debug and compliance test software

R&S®RTP-K92

Order Number 1803.6378.02

Descripción

Automated compliance test solution for eMMC

Order Number 1801.3671.02

Descripción

DDR4/LPDDR4 Signal integrity debug and compliance test software

Order Number 1803.6926.02

Descripción

DDR5 signal integrity debug and compliance test software

Order Number 1326.4425.02

Descripción

ScopeSuite automation

Order Number 1800.6948.02

Descripción

USB 2.0/ 3.2 Gen1 & Gen2 Tx compliance test

Order Number 1800.6990.02

Descripción

USB 3.2 Gen1 & Gen2  RX compliance test

Order Number 1802.9467.02

Descripción

HDMI 1.4b/2.1 (TMDS) compliance test

Order Number 1803.6903.02

Descripción

DisplayPort 1.4a compliance test

Order Number 1803.6910.02

Descripción

Embedded DisplayPort 1.4b/1.5 compliance test

General analysis
Product
Descripción

Order Number 1337.8656.02

Descripción

Jitter analysis

Order Number 1337.8856.02

Descripción

High definition mode

Order Number 1337.8879.02

Descripción

Zone trigger

Order Number 1338.1110.02

Descripción

Spectrum analysis

R&S®RTP-K39

Order Number 1803.6761.02

Descripción

Python script interface for user defined math

Order Number 1326.3064.02

Descripción

Deembedding option for compensation of channel effects

Order Number 1326.3070.02

Descripción

Real-time extension of deembedding option RTP-K121

For maximum acquisition rate and triggering on corrected signals.

Order Number 1800.6025.02

Descripción

Embedding and Equalization

Embedding user-configurable components, predistortion at TX  and equalization at RX via CTLE, FFE or DFE

Order Number 1326.3093.02

Descripción

TDR/TDT analysis

Order Number 1800.6860.02

Descripción

Jitter decomposition

Decomposition of jitter components, display of step response, histograms, synthetic eye diagrams, spectrum and BER-bathtub curve

Order Number 1800.6977.02

Descripción

Jitter and noise decomposition

Decomposition of jitter and noise components, display of step response, histograms, synthetic eye diagrams, spectrum and jitter and noise BER-bathtub curves

Order Number 1803.6861.02

Descripción

PAM-N Analysis

Enabled for advanced jitter & noise, advanced eye (incl. HW-CDR) and selected automated time/amplitude and eye measurements.

Order Number 1803.6561.02

Descripción

Advanced eye analysis, 8 Gbps


Hardware based CDR (max 8 Gbps) and comprehensive mask test library

Order Number 1800.6983.02

Descripción

Advanced eye analysis, 16 Gbps


Hardware based CDR (max 16 Gbps) and comprehensive mask test library

Order Number 1326.4554.02

Descripción

High-speed serial pattern trigger (8 Gbps CDR)

Order Number 1326.4560.02

Descripción

High-speed serial pattern trigger (16 Gbps CDR)

Vector signal analysis
Product
Descripción

Order Number 1800.6683.02

Descripción

I/Q software interface

Converts modulated signals to I/Q data for further processing

Order Number 1803.6890.02

Descripción

External frontend control

Integrated setup control for external R&S®FExx frontends

Order Number 1345.1011.06

Descripción

Software

Brings the experience and power of Rohde & Schwarz signal analysis to PC and cloud

R&S®FSPC

Order Number 1310.0002.03

Descripción

Licence Dongle

R&S®VSE-K6

Order Number 1320.7516.06

Descripción

Pulse measurements application

R&S®VSE-K6A

Order Number 1345.1286.06

Descripción

Multi-channel pulse measurements

R&S®VSE-K7

Order Number 1320.7539.06

Descripción

Analog modulation analysis (AM/FM/φM)

Modulation analysis for AM/FM/φM modulated single carriers

R&S®VSE-K8

Order Number 1345.1970.06

Descripción

Bluetooth® BR/EDR/LE measurements

R&S®VSE-K10

Order Number 1320.7574.06

Descripción

GSM measurements

GSM/EDGE/ EDGE Evolution

R&S®VSE-K60

Order Number 1320.7868.06

Descripción

Transient measurements

Transient analysis

R&S®VSE-K60H

Order Number 1320.7880.06

Descripción

Transient hop measurements

Transient analysis, requires R&S®VSE-K60

R&S®VSE-K60C

Order Number 1320.7874.06

Descripción

Transient chirp measurements

Transient analysis, requires R&S®VSE-K60

R&S®VSE-K60P

Order Number 1345.2230.06

Descripción

Transient phase noise measurements

R&S®VSE-K70M

Order Number 1345.1211.06

Descripción

Multi-modulation analysis

R&S®VSE-K70 option required

R&S®VSE-K70

Order Number 1320.7522.06

Descripción

Vector signal analysis

R&S®VSE-K70P

Order Number 1345.1228.06

Descripción

BER PRBS measurements

R&S®VSE-K70 option required

R&S®VSE-K72

Order Number 1320.7580.06

Descripción

3GPP FDD measurements

WCDMA signal analysis

R&S®VSE-K91

Order Number 1320.7597.06

Descripción

IEEE 802.11a/b/g measurements

WLAN signal analysis

R&S®VSE-K91P

Order Number 1320.7680.02

Descripción

IEEE 802.11p measurements

WLAN signal analysis

R&S®VSE-K91N

Order Number 1320.7600.06

Descripción

IEEE 802.11n measurements

WLAN signal analysis

R&S®VSE-K91AC

Order Number 1320.7616.06

Descripción

IEEE 802.11ac measurements

WLAN signal analysis

R&S®VSE-K91AX

Order Number 1345.1411.06

Descripción

IEEE 802.11ax measurements

WLAN signal analysis

R&S®VSE-K96

Order Number 1320.7922.06

Descripción

OFDM signal analysis

R&S®VSE-K100

Order Number 1320.7545.06

Descripción

EUTRA/LTE FDD uplink and downlink measurement application

LTE signal analysis

R&S®VSE-K102

Order Number 1320.7551.06

Descripción

EUTRA/LTE advanced and MIMO (downlink)

LTE signal analysis

R&S®VSE-K104

Order Number 1320.7568.06

Descripción

EUTRA/LTE TDD uplink and downlink measurement application

LTE signal analysis

R&S®VSE-K106

Order Number 1320.7900.06

Descripción

EUTRA/LTE

Narrowband IoT analysis

R&S®VSE-K144

Order Number 1309.9574.06

Descripción

5G NR uplink and downlink measurement application

R&S®VSE-K146

Order Number 1345.1305.06

Descripción

5G MIMO measurements

R&S®VSE-K148

Order Number 1345.1392.06

Descripción

5G NR R16 measurements

R&S®VSE-K149

Order Number 1345.1463.06

Descripción

HRP UWB measurements

R&S®VSE-K171

Order Number 1345.1663.02

Descripción

5G NR R17 measurements

R&S®VSE-K175

Order Number 1350.7020.06

Descripción

O-RAN measurements

R&S®VSE-K201

Order Number 1345.2001.06

Descripción

OneWeb reverse link measurement application for R&S®VSE software. This application can be used to analyze OneWeb SC-FDMA signals.

R&S®VSE-K544

Order Number 1309.9580.06

Descripción

User-defined Frequency Correction by SnP File

General accessories
Product
Descripción
R&S®RTP-Z1

Order Number 1337.9569.02

Descripción

Front cover for R&S®RTP

R&S®RTP-Z4

Order Number 1801.4610.02

Descripción

Transport case

For carrying R&S®RTP oscilloscopes and accessories.

R&S®RT-ZA16

Order Number 1320.7074.02

Descripción

Precision BNC to SMA adapter

R&S®RT-ZA17

Order Number 1337.8991.02

Descripción

Matched pair SMA cable for TDR measurement

R&S®ZZA-KN6

Order Number 1175.3056.00

Descripción

19" adapter BW2010, cabinet 6HU 1/1

Test fixtures
Product
Descripción
R&S®RT-ZF1

Order Number 1317.3420.02

Descripción

Test fixture set for USB2.0 compliance

Test fixture for USB 1.0/1.1/2.0 compliance tests. Supported by R&S®RTO-K21 USB compliance test option.

R&S®RT-ZF2

Order Number 1317.5522.02

Descripción

Test fixture for 10/100/1000BASE-T, 10G-BaseT and BroadR-Reach Ethernet

Supported by R&S®RTO-K22, R&S®RTO-K23 and R&S®RTO-K24 Ethernet compliance test options.

R&S®RT-ZF2C

Order Number 1317.5639.02

Descripción

1000BASE-T Jitter Test Cable

1000Base-T jitter test cable for the R&S®RTO-K22 Ethernet compliance test solution.

R&S®RT-ZF4

Order Number 1333.0880.02

Descripción

10BASE-TE Energy Efficient Ethernet Test Fixture

R&S®RT-ZF5

Order Number 1333.0896.02

Descripción

Ethernet Probing Fixture

(directional, link partner, load)

R&S®RT-ZF7

Order Number 1801.3688.02

Descripción

Automotive T&D Fixture

Automotive Ethernet probing fixture including 2 SMA adapters RT-ZF7A

R&S®RT-ZF7A

Order Number 1801.4126.02

Descripción

SMA Adapter

High precision adapter board from automotive connector to SMA

R&S®RT-ZF7P

Order Number 1802.9680.02

Descripción

SMA adapter for PoDL

High precision adapter board from Industrial Ethernet connectors to SMA

R&S®RT-ZF8

Order Number 1801.3694.02

Descripción

Automotive Ethernet Compliance Fixture

Test fixture for 100BASE-T1 and 1000BASE-T1 compliance testing according to IEEE and OPEN TC8

R&S®RT-ZF30

Order Number 1333.2099.02

Descripción

Probe test fixture

Deembed your probe with Proven Probe function (requires R&S RTP-K121)

Active single-ended probes
Product
Descripción

Order Number 1418.7307.02

Descripción

Active single-ended probe, 6 GHz, R&S®ProbeMeter, Rohde & Schwarz probe interface

Active differential probes
Product
Descripción

Order Number 1410.5205.02

Descripción

Active differential probe, 4.5 GHz, Rohde & Schwarz probe interface

Passive broadband probes
Product
Descripción

Order Number 1409.7608.02

Descripción

Transmission line probe, 8 GHz, passive

Power rail probes
Product
Descripción

Order Number 1800.5406.02

Descripción

Power rail probe, 4 GHz, R&S®ProbeMeter, Rohde & Schwarz probe interface

Probe amplifier modules
Product
Descripción

Order Number 1419.3105.02

Descripción

Modular probe amplifier module, 6 GHz

Order Number 1419.3205.02

Descripción

Modular probe amplifier module, 9 GHz

Order Number 1800.4500.02

Descripción

Modular probe amplifier module, 13 GHz

Order Number 1800.4600.02

Descripción

Modular probe amplifier module, 16 GHz

Probe tip modules
Product
Descripción
R&S®RT-ZMA10

Order Number 1419.4301.02

Descripción

Solder-in probe tip cable for R&S®RT-ZM modular probe system

> 16 GHz, < 28 ps, probe tip module, P/N/DM/CM

R&S®RT-ZMA10-6

Order Number 1801.4349.02

Descripción

Set 6x solder-in probe tip cable for R&S®RT-ZM modular probe system

>16 GHz, < 28 ps, probe tip module, P/N/DM/CM

R&S®RT-ZMA11

Order Number 1419.4318.02

Descripción

Solder-in probe tip cable with ext. temp. range for R&S®RT-ZM modular probe system

> 16 GHz, < 28 ps, probe tip module, P/N/DM/CM

R&S®RT-ZMA12

Order Number 1419.4324.02

Descripción

Square-pin probe tip module for R&S®RT-ZM modular probe system

> 6 GHz, < 75 ps, probe tip module, P/N/DM/CM

R&S®RT-ZMA14

Order Number 1338.1010.02

Descripción

Flex connect solder-in probe tip module for R&S®RT-ZM modular probe system

>16 GHz, <28 ps, probe tip module, P/N/DM/CM, incl. 10 solder-in flex connect tips

R&S®RT-ZMA15

Order Number 1419.4224.02

Descripción

Quick connect probe tip module for R&S®RT-ZM modular probe system

> 12 GHz, < 37 ps, probe tip module, P/N/DM/CM

R&S®RT-ZMA30

Order Number 1419.4353.02

Descripción

Browser module for R&S®RT-ZM modular probe system

> 16 GHz, < 28 ps, probe tip module, DM

R&S®RT-ZMA40

Order Number 1419.4201.02

Descripción

SMA module for R&S®RT-ZM modular probe system

> 16 GHz, < 28 ps, probe tip module, P/N/DM/CM

R&S®RT-ZMA50

Order Number 1419.4218.02

Descripción

Temperature kit for R&S®RT-ZM modular probe system

> 12 GHz, < 37 ps, probe tip module, P/N/DM/CM

Probe accessories
Product
Descripción
R&S®RT-ZM-ACA

Order Number 1419.3928.02

Descripción

Calibration in line with ISO 17025 and ISO 9000

DAkkS (formerly DKD) calibration in line with ISO 17025 and ISO 9000 for R&S®RT-ZMxx modular probe amplifier (order only with device)

Order Number 1326.3641.02

Descripción

3D probe positioner

3D positionier with central tensioning knob for easy clamping and positioning of probes (span width: 200 mm, clamping range: 15 mm)

Application bundles
Product
Descripción
R&S®RTP-TDBDL1

Order Number 1803.6732.02

Descripción

Low speed trigger and decode bundle

Trigger and decode functions for protocols included in R&S®RTP-K500/-K510/-K520/-K530/-K540/-K550/-K600

R&S®RTP-TDBDL2

Order Number 1803.6749.02

Descripción

High-speed trigger and decode bundle

Trigger and decode functions for all protocols included in R&S®RTP-K560/-K570/-K580/-K590/-K600

R&S®RTP-ALLTD

Order Number 1803.6984.02

Descripción

Trigger and decode bundle ALL

Trigger and decode functions that are included with both the RTP-TDBDL1 and RTP-TDBDL2.

R&S®RTP-SIBDL1

Order Number 1803.6755.02

Descripción

Signal integrity debug bundle 1

Perform signal integrity measurements in real time. The signal integrity debug bundle includes basic jitter measurements (R&S®RTP-K12), zone trigger function (R&S®RTP-K19), real-time deembedding (R&S®RTP-K121/K122) and high-speed serial pattern trigger function, including up to 16 Gbps CDR (R&S®RTP-K141).

R&S®RTP-SIBDL2

Order Number 1800.7309.02

Descripción

Signal integrity debug bundle 2

Perform advanced signal integrity analysis. This signal-integrity-debugging includes: Embedding & Equalization (RTP-K126), Advanced Jitter & Noise (RTP-K134), PAM-N Analysis (RTP-K135), 16Gbps Advanced Eye (RTP-K137)

R&S®RTP-ALLSI

Order Number 1800.7315.02

Descripción

Signal integrity bundle ALL

Perform advanced signal integrity measurements without any limitations. The signal integrity debug bundle includes all signal integrity options of the RTP-SIBDL1 and RTP-SIBDL2 bundles.

R&S®RTP - Media Center

The R&S®RTP Oscilloscope. Just got better

R&S®RTP oscilloscope – just got better

Realtime deembedding

Realtime deembedding

Benefits and advantages

R&S®RTP Oscilloscope for RF signal analyis

IQ Mode for RF Signal Analysis

Downconvert and Downsample acquired RF signals to IQ data

Vídeos de aplicaciones

USB 3.1 interface debug with realtime deembedding
Depuración de interfaz USB 3.1 con compensación en tiempo real

Cómo usar la compensación en tiempo real en un dispositivo USB 3.1 Gen1.

Time delay analysis of multiple wideband RF signals
Análisis de retardo temporal de varias señales RF de banda ancha

Análisis de varias señales RF, usadas habitualmente para radiogoniometría, p. ej.

DDR3 signal integrity debugging
Depuración de integridad de señal de DDR3

Cómo depurar la integridad de la señal en un dispositivo DDR3.

Le puede interesar también

10 años de innovación con los osciloscopios de Rohde & Schwarz

Más información

Oscilloscopes promotion

Save up to 46% on fully equipped oscilloscopes. All options included from the start. Save now.

More information

Página de webinars sobre osciloscopios para aplicaciones de diseño digital y electrónica de potencia

Más información

Solicitar información

¿Tiene preguntas o necesita información adicional? Simplemente complete este formulario y nos pondremos en contacto con usted.
